Product Description

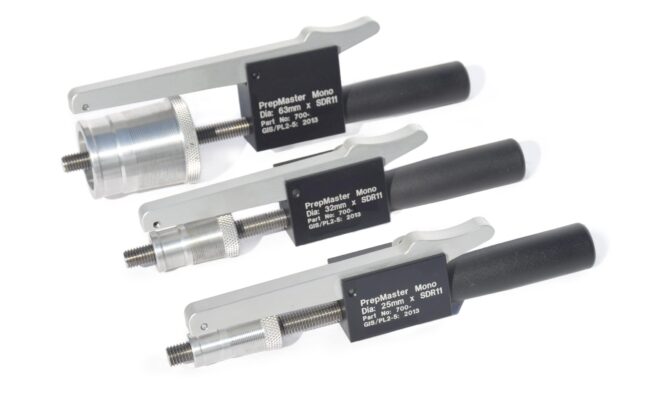

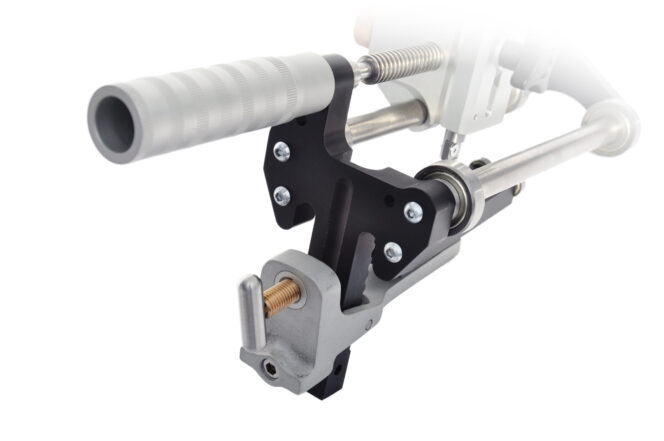

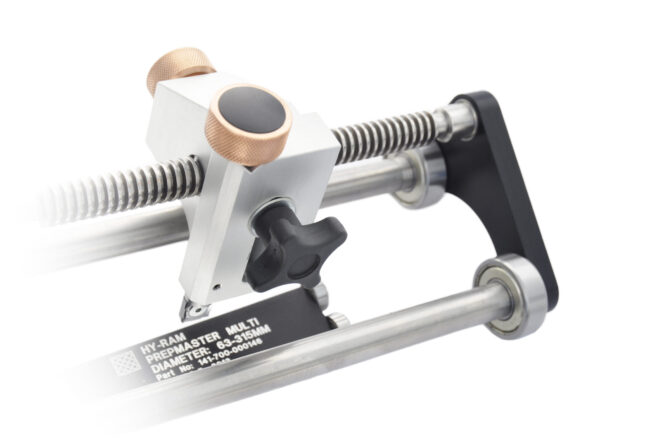

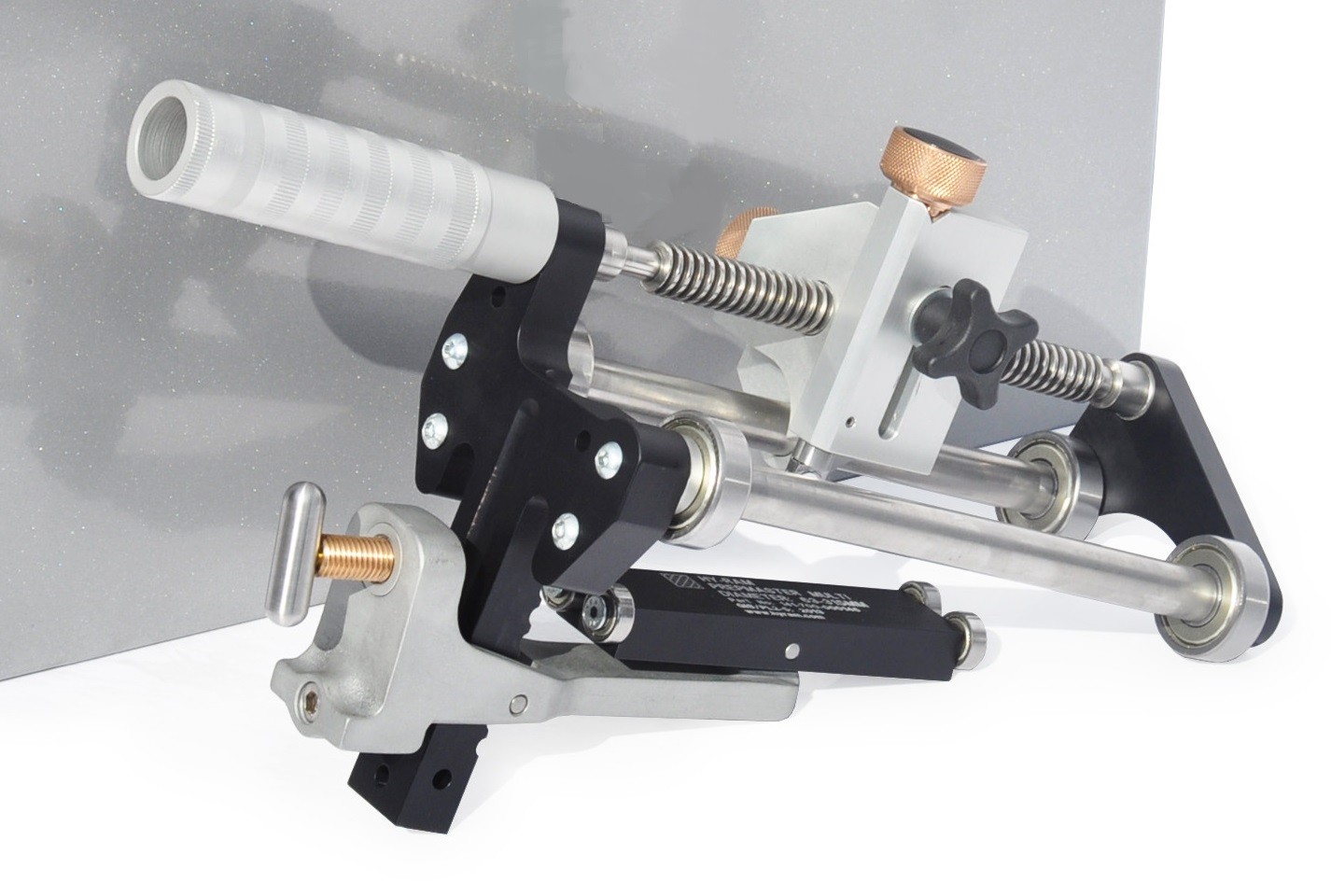

Mechanical scraping and pipe preparation is an essential step in electrofusion welding and to make things easier, Acu-Tech Piping Systems now offer a state of the art Mechanical Rotary Scraping Tool. This Mechanical Scraping Tool, (also known as a Pipe End Scraper or End Preparation Tool), exposes the outer surface of PE pipe, which is why it is sometimes called an Exposure Kit. PrepMaster Multi scrapers incorporate a hardened, replaceable blade and give a controlled depth of cut. The Rotary Scraping Tool is manually operated, and available for HDPE pipe sizes between 63 and 710 mm.  Smaller ‘Prepmaster Mono’ Scraper Tools are available for scraping smaller gauge HDPE pipe. The Prepmaster Mono Scraping Tools are available in one tool per pipe/pipe-wall size, from 20 mm to 63 mm outside diameter, and are also known as HDPE pipe peelers or Poly Pipe Scrapers.

The use of hand scrapers is becoming more and more limited, as it is difficult to consistently remove 0.2 mm across the entire pipe surface. A rotary HDPE scraper gives you confidence that the 0.2 mm contaminated layer of poly has been removed, so the pipe can be electrofusion welded without the risk of failure. Replacement blades are available for when your rotary scraper becomes difficult to push – it should allow the operator to scrape the poly pipe with ease.

Product code Description
700-000146 63-315 mm diameter pipe
700-000147 90-400 mm diameter pipe
700-000148 110-500 mm diameter pipe
700-000149 250-710 mm diameter pipe
117-000291 PrepMaster Multi Cutting Blade (4 Sided) for all of the above 4 Scrapers

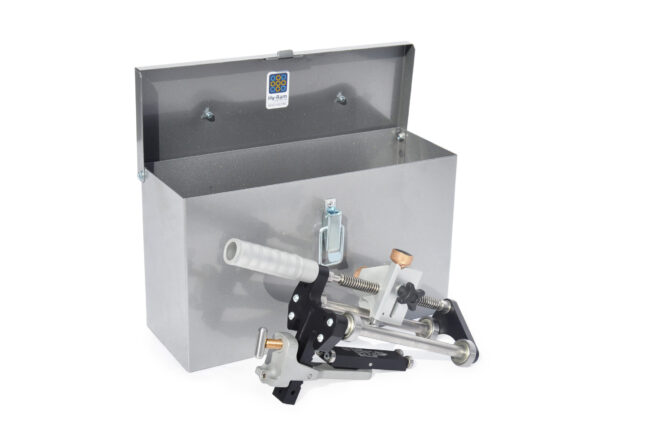

045-000288 Steel Storage Box 63-315 mm
045-000289 Steel Storage Box 90-400 mm and 110-500 mm
045-000290 Steel Storage Box 450-710 mm
