In the realm of poly welding, particularly in the practice of butt fusion welding, the utilization of butt-welding equipment is paramount.

This equipment, often referred to as PE butt welding machines, HDPE butt welders, or poly pipe welders, plays a pivotal role in the process by preparing, heating, and joining HDPE pipes seamlessly.

Butt welding equipment can be found in two primary variations: those equipped with manual hydraulics and those powered by electricity.

It’s important to note that all butt-welding equipment, except for self-contained models, necessitates a reliable power supply to operate the heater plate and milling cutter/scraper effectively.

In the case of electric hydraulic butt welders, the electricity supply also powers the hydraulic system responsible for securely holding the pipe during scraping, heating, and the subsequent cooling process.

This synergy of functions ensures a robust and efficient butt fusion welding experience.



HDPE Welders for sale & hire.

Acu-Tech sells a wide range of PE butt welding welders used for HDPE butt welding.

Will you be poly welding on site without a reliable power supply?

Acu-Tech also sells/hires portable generators, designed to be used with poly welding equipment. See this link for more information.

Acu-Tech Symbol 450 mm Ufuse Butt Fusion Machine (Electric Hydraulic)

Buy the Ufuse 450 butt fusion welding machine for butt-welding polyethylene pipes with an outside diameter between 200 mm and 450 mm diameter in electric hydraulic mode.

Contact our team to hire a suitable generator, for butt welding in the field.

The butt-welding machine includes a jib crane to assist with the milling cutter and heater plate, which are quite heavy due to the large capacity of the butt welder. This but welder comes complete with an extractable heating plate, extractable milling cutter, electro-hydraulic gearcase, heating plate and milling cutter support, tool kit, and stub end device (spider).

  • Set of inserts OD 200, 225, 250, 280, 315, 355, 400 mm,
  • Main clamp OD 450 mm
  • Power requirements: 8.38 kW
  • Recommended genset for field operation – 11 kVA 415 v, three phase
Dixon 450 Butt Fusion Welding Equipment Rental

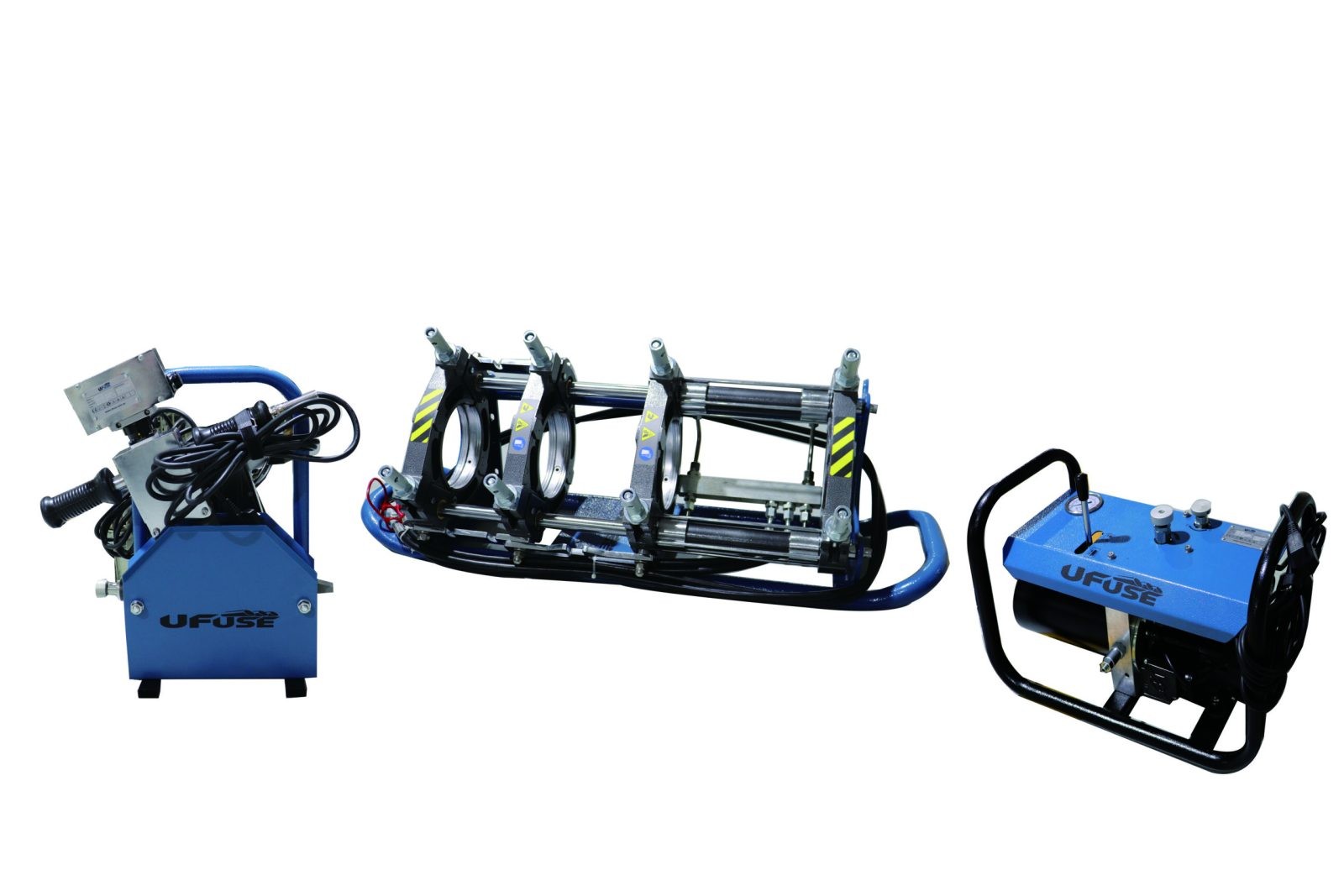

Acu-Tech Symbol 160 mm Ufuse PE Butt Welding – Butt Fusion Machine (Electric Hydraulic)

Buy this 160 mm butt fusion welder for welding HDPE pipe between 63 mm and 160 mm diameter in electric hydraulic mode.

For use in the field, you may need a 5.9 kVA portable generator.

The 160 mm butt welder comes complete with an extractable heating plate, extractable milling cutter, electro-hydraulic gearcase, heating plate and milling cutter support, tool kit, and stub end device (spider).

  • Set of inserts OD 63, 75, 90, 110, 125, 140 mm,
  • Main clamp OD 160 mm.
  • Power requirements: 2.45 kW
  • Minimum required of a 3.5 kVA generator 240 V, single phase.
  • 160 Butt Welder Equipment Hire

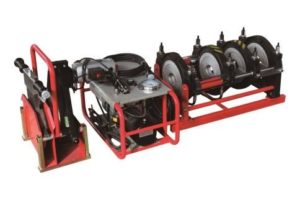

    Acu-Tech Symbol 250 mm Ufuse HDPE Butt Fusion Machine (Electric Hydraulic)

    Buy this 250 mm butt fusion machine for welding HDPE pipes between 63 mm and 250 mm diameter in electric hydraulic mode.

    You may need a 5.9 kVA portable generator to power your poly welding equipment on site.

    250 mm fusion welding machine hire comes complete with an extractable heating plate, extractable milling cutter, electro-hydraulic gearcase, heating plate and cutter support, tool kit, and stub end device (spider).

  • Set of inserts OD 63, 75, 90, 110, 125, 140, 160, 180, 200, 225 mm,
  • Main clamp OD 250 mm.
  • Power requirements: 3.85 kW
  • Minimum required of a 5.9 kVA generator 240 V, single phase.
  • 250 HDPE Welding Equipment 315 Poly Welding Equipment for sale
    Acu-Tech Symbol 355 mm Ufuse Butt Fusion Machine (Electric Hydraulic)

    Purchase this 355 mm butt welder for HDPE welding of PE pipe between 90 mm and 355 mm diameter in electric hydraulic mode.

    Buy this fusion welder along with the 6.8 kVA portable generator – perfect for poly welding equipment being used on site.

    The Ufuse poly pipe welder comes complete with an extractable heating plate, extractable milling cutter, electro-hydraulic gearcase, heating plate and milling cutter support, tool kit, and stub end device (spider).

  • Set of inserts OD 90, 110, 125, 140, 160, 180, 200, 225, 250, 280, 315 mm,
  • Main clamp OD 355 mm.
  • Power requirements: 4.85 kW
  • Minimum required of a 6.5 kVA generator 240 V, single phase.
  • 630 Hire Butt Fusion Welding Equipment
    Acu-Tech Symbol 630 mm Ufuse Butt Fusion Machine (Electric Hydraulic)

    The Ufuse 630 butt welder machine is perfect for butt-welding HDPE pipes with an outside diameter between 315 mm and 630 mm diameter in electric hydraulic mode.

    Contact our team to hire or buy a suitable generator, for on-site butt welding.

    The butt-welding machine includes a jib crane to assist with the milling cutter and heater plate, which are quite heavy due to the large capacity of the butt welder.

    When you buy this poly welding equipment, it includes an extractable heating plate, extractable milling cutter, electro-hydraulic gearcase, heating plate and milling cutter support, tool kit, and stub end device (spider).

  • Set of inserts OD 315, 355, 400, 450, 500, 560 mm,
  • Main clamp OD 630 mm
  • Power requirements: 12.35 kW –
  • Recommended genset for field operation – 16 kVA 415 V, three phase
  • Hire 630 Ritmo Butt Welding Machinery Rental for hire Acu-Tech Ritmo Pipe Welder for Hire

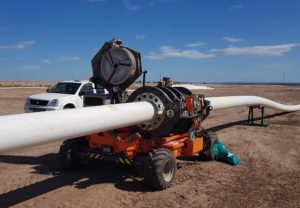

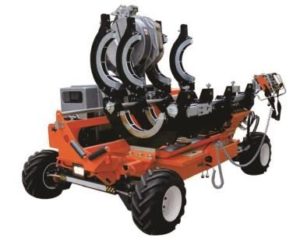

    Acu-Tech Symbol 630 Ritmo All Terrain Butt Fusion Welding Machine(Self-Contained Hydraulic)

    The Delta 630 all-terrain butt welder is powered by a low vibration diesel engine, suitable for welding thermoplastic pipes for the transport of water, gas and other fluids under pressure.

    The Ritmo butt fusion equipment can weld poly pipes from 225 mm to 630 mm.

    The butt-welding machine can fuse pipes according to the ISO 21307 high pressure standard (pressure range is 3.5 times higher than the ISO low pressure ones). This greatly enhances productivity allowing 60% time saving.

    The all-terrain welding machine can climb rough terrain up to 30% gradient, with its 4 wheel drive and detachable control panel, which provides extra safety for the operator on rough terrain.

    The butt-welding machine purchase includes a stub end device (spider),and has a key to prevent unauthorised use.

    The Delta 630’s 2200 cc diesel engine allows the butt welder to operate on site without having to hire a generator.

    Standard Ritmo butt welder machine features include:
  • Working range: 225 – 630 mm diameter PE pipe
  • 4 steering wheels drive, detachable control panel
  • Self-contained with on-board generator – Diesel-engine 2200 cc 22, 7 Kw
  • SmartLock inserts and sliding 3rd clamp for welding HDPE fittings
  • Data-logging with GPS; memory 4000 report
  • Hydraulic lifts, and hydraulic-controlled clamps and milling cutter
  • Can be equipped with a range of welding inserts, available on request
  • ‘Easy Life’ automatic welding system which is Wi-Fi ready and works with the App ‘Set & Go – Pro’ – making it easier to use your poly welding equipment
  • Power requirements: Inbuilt power generation. NO generator required
  • 1000 Hire Butt Fusion Welding Machinery Rental

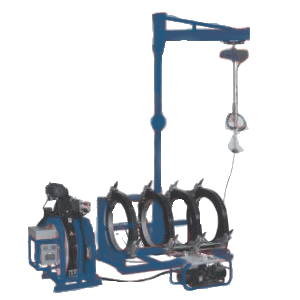

    Acu-Tech Symbol 1000mm UFUSE Butt Fusion Machine (Electric Hydraulic)

    The Ufuse 1000 butt fusion welding machine is perfect for butt-welding polyethylene pipes with an outside diameter between 630 mm and 1000 mm diameter.

    For on-site butt welding, contact our team to hire a suitable generator.

    The butt welding machine includes a jib crane to assist with the milling cutter and heater plate, which are quite heavy due to the large capacity of the butt welder. The welder is complete with butt welding machine body, jib crane, extractable heating plate, extractable milling cutter, electro-hydraulic gearcase, heating plate and milling cutter support, tool kit, stub end device (spider).

  • Set of inserts OD 630, 710, 800, 900 mm,
  • Main clamp OD 1000 mm
  • Power requirements: 24 kW
  • Recommended genset for field operation – 30 kVA 415 V, three phase.
  • 255mm Dixon

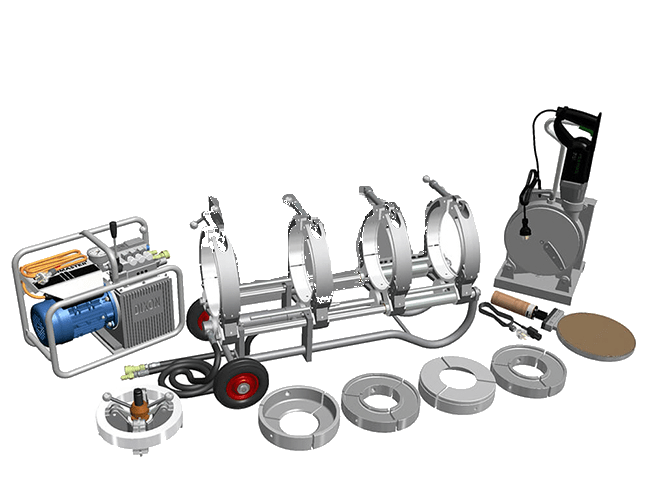

    Acu-Tech Symbol 225mm Dixon

    Suitable for 225-63mm diameter pipe.

    Robust and low maintenance butt-fusion machine with easy one-man operation.

    Provides easy hold of stub flanges and a heater with controlled uniform surface temperature, achieving working temperature in approximately 15 minutes.

    110mm Dixon

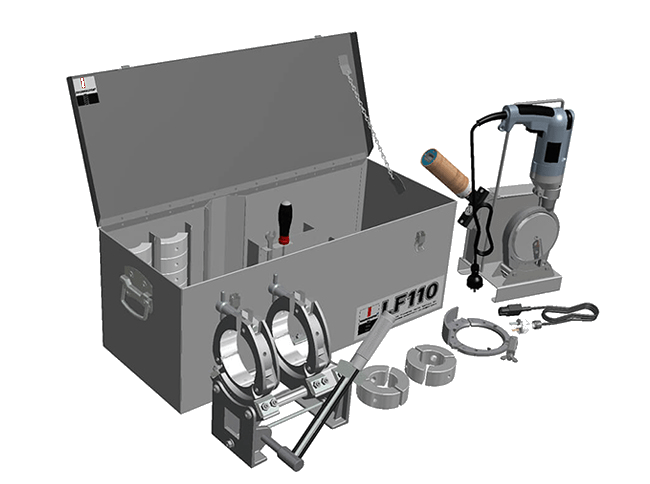

    Acu-Tech Symbol 110mm Dixon
    Suitable for 110-32mm diameter pipe
    • Reliable, low maintenance and compact for narrow trench work.
    • Ultimate flexibility: Reducing Liners and Clamps removable and interchangeable.
    • Heater provides controlled uniform surface temperature.
    • Fast set up. Heater reaches working temperature in approximately 10 minutes.
    • Replaceable non-stick Heater Cloth system reduces downtime.
    • Joints rapidly prepared with the powerful electric Facer.
    350 Dixon
    Acu-Tech Symbol 350 Dixon
    Suitable for 355-110mm diameter pipe
    • Reliable and low maintenance with pre-setting of 3 independent pressures.
    • Unique pipe alignment mechanism overcomes pipe diameter mismatch.
    • Wheels removable for trench work.
    • Easy one-man operation.
    • Joints rapidly prepared with the powerful multi speed Facer.
    • Self-centring Fittings Chuck – simple way to hold stub flanges.
    • Heater provides controlled uniform surface temperature.
    • Heater achieves working temperature in approximately 15 minutes.

    Acu-Tech’s poly welding equipment servicing department specializes in calibration of poly welding equipment (poly pipe welders), and can also supply replacement parts for most brands of butt fusion welders, including hot plates, peelers or scrapers, hydraulic parts, welding clamp inserts, data loggers, engine parts, etc.

    Contact us today with your requirements for poly welding equipment.
