RECYCLE-TECH – Pipelines for Recycled Water

Water is a precious resource in Australia’s dry climate, and this has led to its conservation through the use of Recycled or Reclaimed (grey) water sources, and rainwater catchment systems. Non-potable water supply is now an important part of sustainable building design. The standard AS3500.1:2003 “Water services” requires that the system be kept entirely separate from the potable water supply, and that the piping be colour-coded and labelled to identify it as non-potable.

The water from these sources can be used for:

  • flush systems
  • irrigation
  • cleaning and laundry
  • grey-water systems

The new Recycle-Tech pipe system has been developed exclusively for these applications. The piping uses the same durable, corrosion-resistant polyethylene material that has been successfully used for water pipelines for over 50 years.

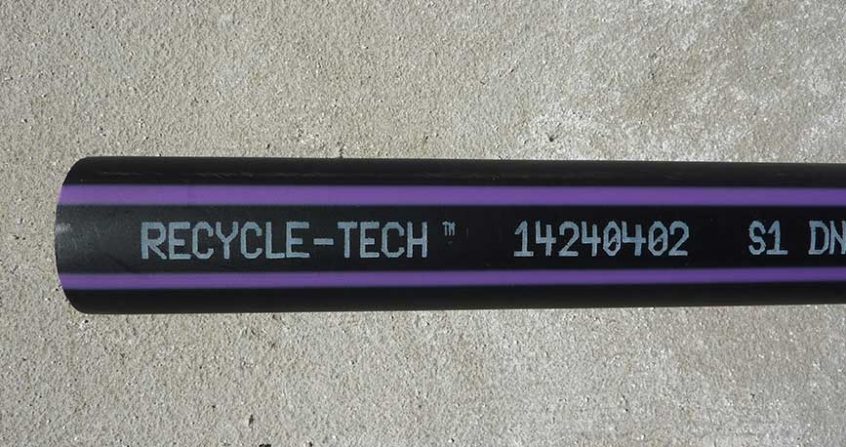

  • Colour coded with lilac stripes for clear identification
  • Suitable for use according to AS 3500.1:2003 “Water services”
  • PN16 pipe available in 25, 32, 40, 63 and 110 mm diameters (6 m lengths). Other sizes available on request.
  • Heat-fused jointing systems create a monolithic structure that is stronger than the pipe itself, and completely leak-free. This eliminates rubber seals which can fail over time, also solving root intrusion problems, and provides pipeline integrity where installed in unstable ground. No dangerous chemicals or glues involved in jointing.
  • Extreme flexibility of pipe allows cold bending to accommodate minor changes in direction.
  • Large range of fittings available, providing flexibility of design.
  • Promotes recycling and environmental sustainability.
  • No anchor or thrust blocks needed (joints are fully end load resistant)
  • 100% recyclable material and a lower carbon footprint make Recycle-Tech the ideal choice.
  • Acu-Recycle HDPE Pipe can be joined with electrofusion fittings, butt welding equipment or compression fittings.

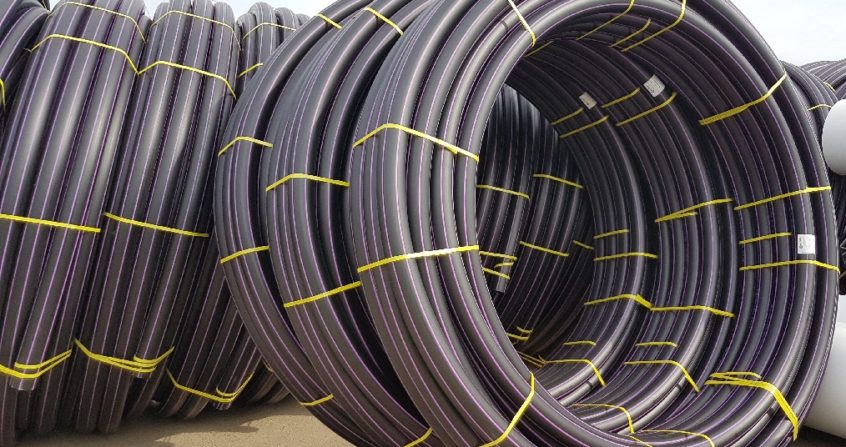

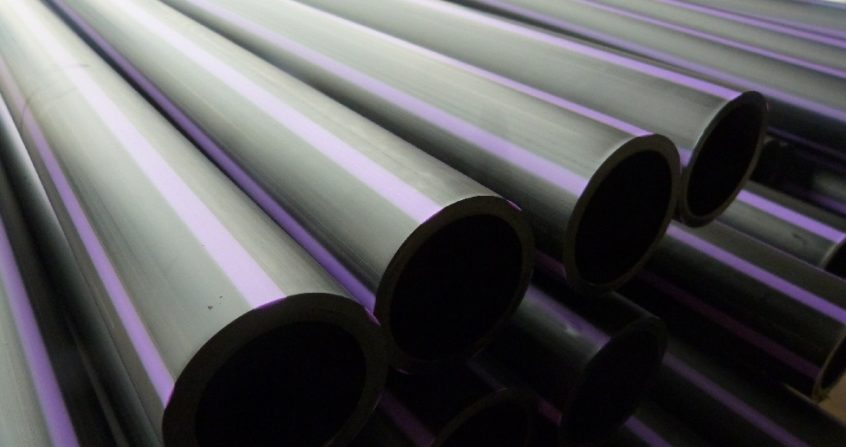

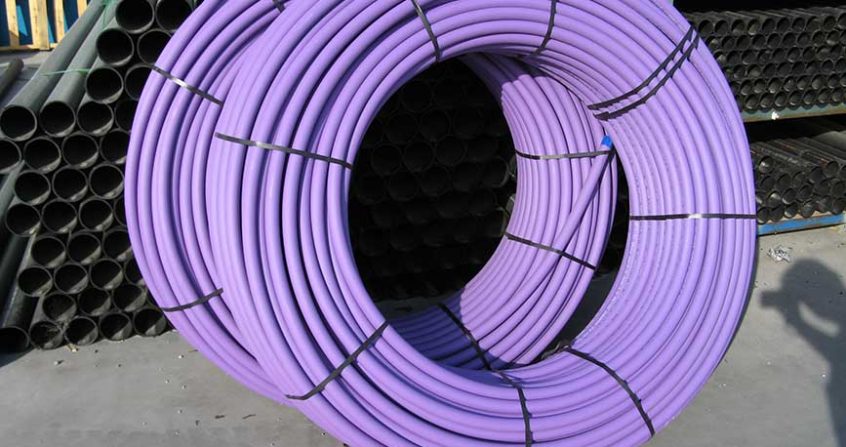

Recycle-Tech Black HDPE pipe with Lilac Stripe or Jacket– sizes below are available in SDR7.4, SDR9, SDR11, SDR13.6, SDR17, SDR21, SDR26, SDR33, SDR41:

  • Recycle-Tech HDPE pipe DN20 mm (PLJ020##100). – exchange the ## for the SDR.
  • Recycle-Tech HDPE pipe DN25 mm (PLJ025##100).
  • Recycle-Tech HDPE pipe DN32 mm (PLJ032##100).
  • Recycle-Tech HDPE pipe DN40 mm (PLJ040##100).
  • Recycle-Tech HDPE pipe DN50 mm (PLJ050##100).
  • Recycle-Tech HDPE pipe DN63 mm (PLJ063##100).
  • Recycle-Tech HDPE pipe DN75 mm (PLJ075##100).
  • Recycle-Tech HDPE pipe DN90 mm (PLJ090##100).
  • Recycle-Tech HDPE pipe DN110 mm (PLJ110##100).
  • Recycle-Tech HDPE pipe DN125 mm (PLJ125##100).
  • Recycle-Tech HDPE pipe DN140 mm (PLJ140##100).
  • Recycle-Tech HDPE pipe DN160 mm (PLJ160##100).
  • Recycle-Tech HDPE pipe DN180 mm (PLJ180##12).
  • Recycle-Tech HDPE pipe DN200 mm (PLJ200##12).
  • Recycle-Tech HDPE pipe DN225 mm (PLJ225##12).
  • Recycle-Tech HDPE pipe DN250 mm (PLJ250##12).
  • Recycle-Tech HDPE pipe DN280 mm (PLJ280##12).
  • Recycle-Tech HDPE pipe DN315 mm (PLJ315##12).
  • Recycle-Tech HDPE pipe DN355 mm (PLJ355##12).
  • Recycle-Tech HDPE pipe DN400 mm (PLJ400##12).
  • Recycle-Tech HDPE pipe DN450 mm (PLJ450##12).
  • Recycle-Tech HDPE pipe DN500 mm (PLJ500##12).
  • Recycle-Tech HDPE pipe DN560 mm (PLJ560##12).
  • Recycle-Tech HDPE pipe DN630 mm (PLJ630##12).
  • Recycle-Tech HDPE pipe DN710 mm (PLJ710##12).
  • Recycle-Tech HDPE pipe DN800 mm (PLJ800##12).



Helping You

If you need advice or guidance, we’re here to help.

Acu-Tech Piping Systems’ sales team have extensive experience in the supply of recycle tech recycled-water pipe for recycled water pipeline installations. We encourage you to tap into this wealth of knowledge for advice and guidance. Our Sales Office is ready to take your call on 08 9238 8000 and will ensure that your enquiry is dealt with promptly. Alternatively, to send an email please click here.
