ACU-RURAL -IMPERIAL PIPE SYSTEM FOR RURAL APPLICATIONS
Providing quality irrigation water to where it is needed is a key challenge in farming and rural areas – precisely where Acu-Tech’s Acu-Rural pipe can come in handy. These pipes are economical and environmentally sustainable, and available to customers across the country through a wide distributor network. The Acu-Rural piping system is the no. 1 choice of ‘ag pipe’ for all water supply lines for farm troughs and dams, irrigation systems, vineyards, etc., providing reliability and longevity. Acu-Rural agricultural pipe can also be used for subsoil drainage or storm-water run-off collection.
Key features and benefits:
Download our Rural Pipe Brochure;
- High quality pipe, made to remain robust even in harsh environments.
- Red stripe and Acu-Rural branding for easy identification.
- Below ground installation will give longer lifetime than above ground.
- Acu-Tech is your one-stop shop for rural pipe supplies, with Plasson compression fittings in stock, and equipment and accessories.

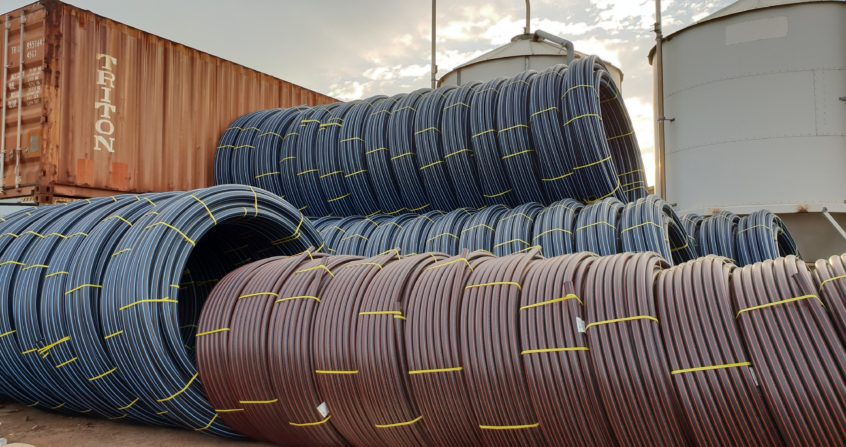

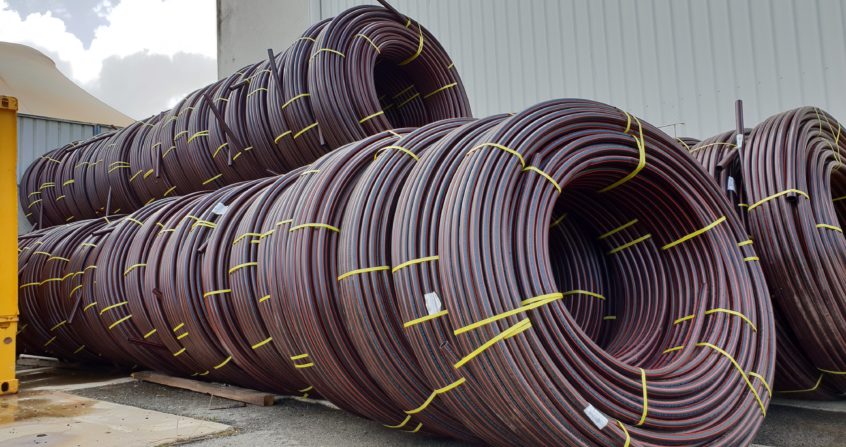

- 20 mm (¾”) to 50 mm (2″) diameter acu rural pipe is available in 50, 150 and 200 metre coils.
- All sizes are rated to 900 kPa (at 20°C), PN 9 (SDR 17).

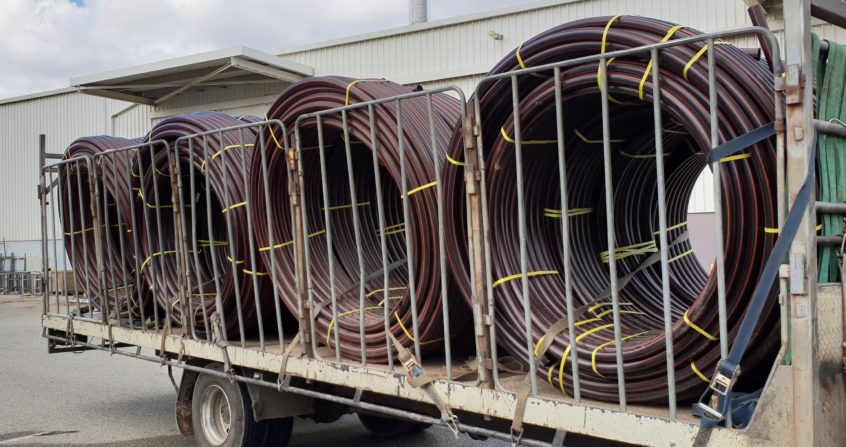

- Larger coils are supplied as ‘Nested’, to save space and transport costs. This means a smaller coil of pipe is placed inside a larger coil of pipe, and strapped together.
- HDPE material has good UV resistance, and will not become brittle at low temperatures.
- The smooth internal surface, resistance to deposits and seamless joints ensure the maximum flow capacities are maintained over time.
- Rural HDPE pipe may also be known as polyethylene flood pipe, or ag pipe (agricultural poly pipe), and is similar to greenline poly pipe or redline poly pipe.

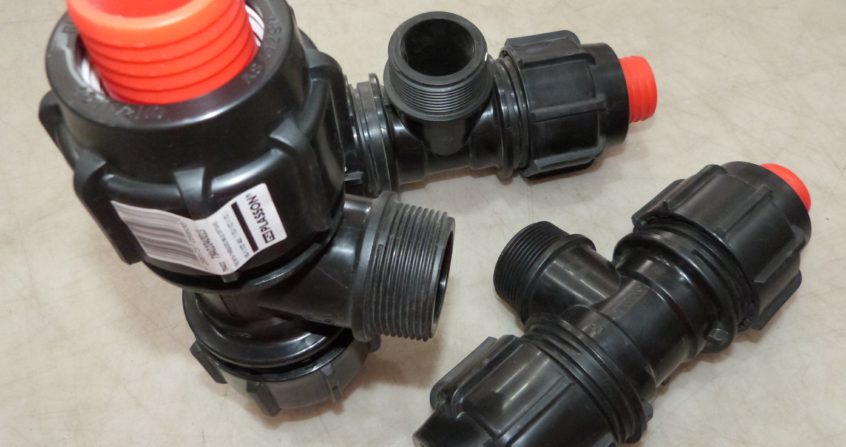

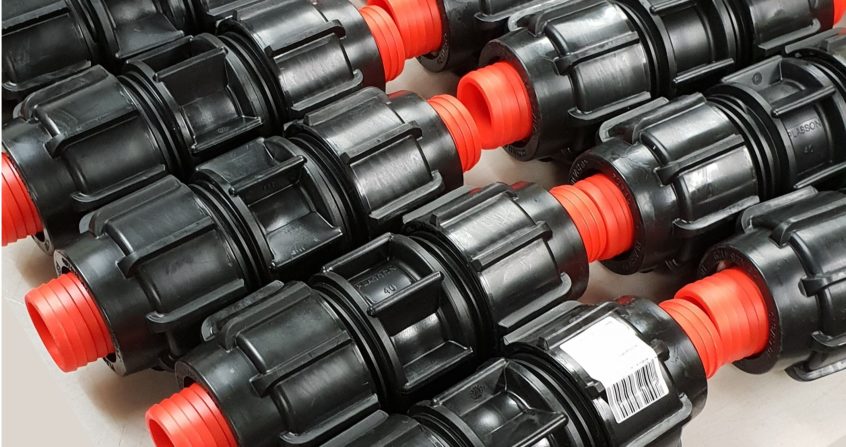

- Plasson Compression Fittings come in a range of sizes, to suit the imperial dimension of rural pipe.
The table below shows the coil sizes and weights (subject to change):
Acu-Rural HDPE pipe can be made in the following sizes:
- Acu-Rural poly pipe 3/4″ OD 200m coil (RRS02017200) – 0.75″ (20 mm) OD rural PE ag pipe.
- Acu-Rural poly pipe 1″ OD 50m coil (RRS02517050) – 1″ (25 mm) OD rural PE ag pipe.
- Acu-Rural poly pipe 1″ OD 200m coil (RRS02517200) – 1″ (25 mm) OD rural PE ag pipe.
- Acu-Rural poly pipe 1 1/4″ OD 50m coil (RRS03217050) – 1.25″ (32 mm) OD rural PE ag pipe.
- Acu-Rural poly pipe 1 1/4″ OD 150m coil (RRS03217150) – 1.25″ (32 mm) OD rural PE ag pipe.
- Acu-Rural poly pipe 1 1/2″ OD 50m coil (RRS04017050) – 1.5″ (40 mm) OD rural PE ag pipe.
- Acu-Rural poly pipe 1 1/2″ OD 150m coil (RRS04017150) – 1.5″ (40 mm) OD rural PE ag pipe.
- Acu-Rural poly pipe 1 1/2″ OD 300m coil (RRS04017300) – 1.5″ (40 mm) OD rural PE ag pipe.
- Acu-Rural poly pipe 2″ OD 100m coil (RRS05017100) – 2″ (50 mm) OD rural PE ag pipe.
- Acu-Rural poly pipe 2″ OD 200m coil (RRS05017200) – 2″ (50 mm) OD rural PE ag pipe.

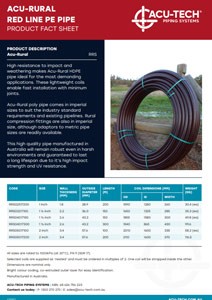

Product Fact Sheet
Download our Product Fact Sheet Here
If you need assistance, we’re here to help.
Acu-Tech Piping Systems’ sales team have extensive experience in the supply of water pipeline installations, mainly using Acu-Rural irrigation pipe. We encourage you to tap into this wealth of knowledge for advice and guidance. Our sales office is ready to take your call on 08 9238 8000
and will ensure that your enquiry is dealt with promptly. Alternatively, to send a message please click here
