Dixon

Butt Welders.

DIXON MV70 Butt Welder, Acu-Tech Piping Systems

The Dixon Butt Welder is the benchmark for reliability and robust design, with manufacturing in Australia.

These machines require low maintenance and are designed for trench and surface welding. All Dixon heater plates use a replaceable non-stick cloth system that can be easily swapped on site to reduce welder downtime. With local manufacturing, parts are readily available for rapid repairs.

Browse the range.

DIXON MV70 Butt Welder, Acu-Tech Piping Systems

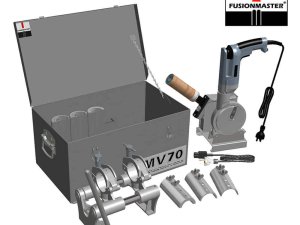

DIXON MV70 Butt Welder

  • Extractable and electric heating plate and milling cutter
  • Compact 2 jaw main carriage
  • Manual torque wrench lever operation
  • Carry case and tool accessories
  • Set of inserts: 32, 40, 50 and 63mm
  • Main clamp OD: 63mm
  • Rural pipe liner set is for1’/4”. 1’/2”, 2” pipe
Product Code Description
134-0050 Dixon MV70 But Welder
134-0051 MV70 Metric Liner Set
134-0052 MV70 Rural Pipe Liner Set

DIXON LF110 Butt Welder

  • Extractable and electric heating plate and milling cutter
  • Compact 2 jaw main carriage
  • Manual torque wrench lever operation
  • Carry case and tool accessories
  • Set of inserts: 32, 40, 50, 63, 75, 90 and 110mm
  • Main clamp OD: 110mm
Product Code Description
134-0100 DIXON LF110 Butt Welder
134-0101 LF110 Reducing Liner Set
DIXON HF225 Butt Welder, Acu-Tech Piping Systems

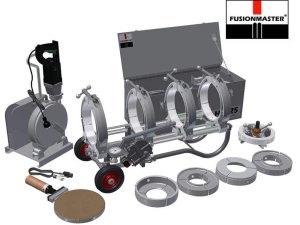

DIXON HF225 Butt Welder

  • Extractable and electric heating plate and milling cutter
  • 4 jaw main carriage
  • Manual self-contained hydraulic hand-pump
  • Carry case and tool accessories
  • Detachable wheel assembly
  • Stub device
  • Set of inserts: 63, 75, 90, 110, 125, 140, 160, 180, 200, and 225mm
  • Main clamp OD: 225mm
Product CodeDescription
134-0150DIXON HF225 Butt Welder
134-0151DIXON 225 Reducing Liner Set
DIXON EHF225 Butt Welder, Acu-Tech Piping Systems

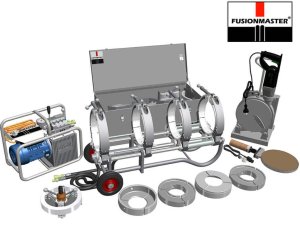

DIXON EHF225 Butt Welder

  • Extractable and electric heating plate and milling cutter
  • 4 jaw main carriage
  • Electrohydraulic power pack with three independent pressure controls which can be pre-set.
  • Carry case and tool accessories
  • Detachable wheel assembly
  • Stub device
  • Set of inserts: 63, 75, 90, 110, 125, 140, 160, 180, 200, and 225mm
  • Main clamp OD: 225mm.
Product Code Description
134-0200 DIXON EHF225 Butt Welder
134-0151 DIXON 225 Reducing Liner Set

DIXON HF350 Butt Welder

  • Extractable and electric heating plate and milling cutter
  • 4 jaw main carriage
  • Carry case and tool accessories
  • Detachable wheel assembly
  • Stub device
  • Set of inserts: 110, 125, 140, 160, 180, 200, 225, 250, 280, 315, and 355mm
  • Main clamp OD: 355mm
  • Manual self-contained hydraulic hand pump
  • Jaw alignment mechanism
Product Code Description
134-0250 DIXON HF355 Butt Welder
134-0251 DIXON 355 Reducing Liner Set

DIXON EHF350 Butt Welder

  • Extractable and electric heating plate and milling cutter
  • 4 jaw main carriage
  • Electro-hydraulic gear-case with three independent pressure controls which can be pre-set
  • Carry case and tool accessories
  • Detachable wheel assembly
  • Stub device
  • Set of inserts: 110, 125, 140, 160, 180, 200, 225, 250, 280, 315, and 355mm
  • Main clamp OD: 355mm
  • Jaw alignment mechanism
Product Code Description
134-0300 DIXON EHF355 Butt Welder
134-0251 DIXON 355 Reducing Liner Set
DIXON HF450 Butt Welder, Acu-Tech Piping Systems

DIXON HF450 Butt Welder

  • Extractable and electric heating plate and milling cutter
  • 4 jaw main carriage
  • Electro hydraulic power pack mounted on the main frame with three independent pressure controls which can be pre-set
  • Carry case and tool accessories
  • Detachable wheel assembly
  • Jaw alignment mechanism
  • Stub device
  • Set of inserts: 200, 225, 250, 280, 315, 355, 400 and 450mm
  • Main clamp OD: 450mm
Product Code Description
134-0350 DIXON HF450 Butt Welder
134-0351 DIXON 450 Liner Set
134-0352 DIXON 450 Stub End Device
134-0353 DIXON 450 Wheeled Assembly
DIXON HF630 Butt Welder, Acu-Tech Piping Systems

DIXON HF630 Butt Welder

  • Extractable and electric heating plate and milling cutter
  • 4 jaw main carriage
  • Electro hydraulic power pack mounted on the main frame with three independent pressure controls which can be pre-set
  • Carry case and tool accessories
  • Detachable wheel assembly
  • Jaw alignment mechanism
  • Stub device
  • Set of inserts: 355, 400, 450, 500, 560 and 630mm
  • Main clamp OD: 630mm
  •
Product Code Description
134-0400 DIXON HF630 Butt Welder
134-0401 DIXON 630 Liner Set
134-0402 DIXON 630 Stub End Device
134-0403 DIXON 630 Wheeled Assembly

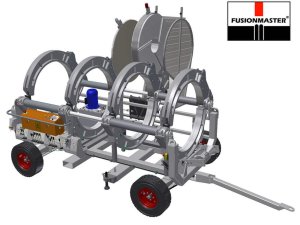

DIXON H1000 Butt Welder

  • Extractable and electric heating plate and milling cutter
  • 4 jaw main carriage
  • Electro hydraulic power pack mounted on the main frame with three independent pressure controls which can be pre-set
  • Carry case and tool accessories
  • Detachable wheel assembly
  • Jaw alignment mechanism & hydraulic clamp locking
  • Stub device
  • Set of inserts: 630, 710, 800, 900 and 1000mm
  • Main clamp OD: 1000mm
Product Code Description
134-0450 DIXON HF1000 Butt Welder
134-0457 DIXON 1000 Liner Set

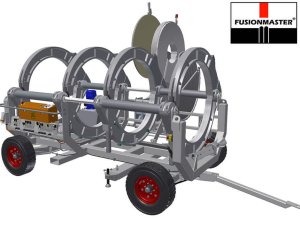

DIXON H1200 Butt Welder

  • Extractable and electric heating plate and milling cutter
  • 4 jaw main carriage
  • Electro hydraulic power pack mounted on the main frame with three independent pressure controls which can be pre-set
  • Carry case and tool accessories
  • Detachable wheel assembly
  • Jaw alignment mechanism & hydraulic clamp locking
  • Stub device
  • Set of inserts: 710mm, 800mm, 900mm, 1000mm & 1200mm
  • Main clamp OD: 1200mm
Product Code Description
134-0500 DIXON HF1200 Butt Welder
134-0501 DIXON 1200 Liner Set
