Acu-Tech sells Threaded Fittings, including BSP threaded fittings, and a large range of poly transition fittings. Poly transition fittings are made by moulding a HDPE spigot over the copper, steel, plastic or stainless steel coupling, providing a transition in pipe material to HDPE pipe. PE transition fittings for HDPE pipe come in many different types and sizes, and for many applications.

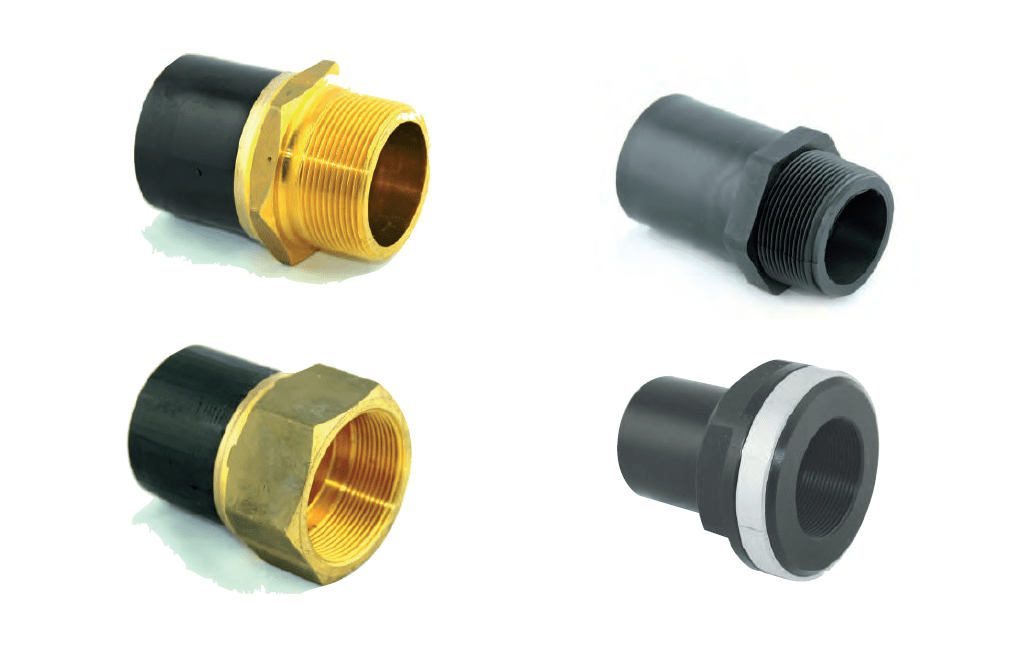

HDPE BSP Fittings are used to join a pipeline to a tank or vessel, or to transition from poly pipe to
copper pipe. Female BSP threaded adaptors can be supplied with a steel retaining ring in larger sizes. Threaded long spigot adaptors can be electrofusion welded or butt welded to a pipeline. Short spigot threaded adaptors can only be butt welded.
Copper pipe gas adaptor fittings are available from 20 mm to 63 mm. A PE – copper transition fitting has a moulded PE fitting that transitions to a copper pipe end. This allows a seamless transition from HDPE gas pipe and copper gas pipe, without having to use brass screw fittings.
HDPE Transition Fittings
The PE-to-steel roll groove adaptor can save time and money, by transitioning from
HDPE Pipe to roll groove steel in one fitting. This saves using two flanges, a gasket and 8 bolt sets, and a lot of tightening and checking by the operator. The roll groove steel adapter works well for fire hydrant and booster connections, and is available in 125 mm (4″) & 180 mm (6″) PN16, SDR11.
The following combinations of HDPE Transition Fittings are available:
- Polyethylene HDPE to brass male threaded adapter.
- Polyethylene HDPE to brass female threaded insert.
- Polyethylene HDPE male BSP threaded adapter.
- Polyethylene HDPE female BSP threaded adapter.
- Polyethylene HDPE to stainless steel threaded fittings.
- Polyethylene HDPE threaded nipple BSP.
- Polyethylene HDPE threaded reducing nipple BSP.
- Polyethylene HDPE threaded socket BSP.
- Polyethylene HDPE threaded reducing bush BSP.
- Polyethylene HDPE threaded plug BSP.
- Polyethylene HDPE threaded cap BSP.
- Polyethylene HDPE to copper adaptor.
- Polyethylene HDPE to PVC adaptor.
- Polyethylene HDPE to PP adaptor.
- Polyethylene HDPE to steel roll groove adaptor.
BSP Threaded Nipple Fittings:
- HDPE threaded nipple fitting ½” (75840015).
- HDPE threaded nipple fitting ¾” (75840020).
- HDPE threaded nipple fitting 1″ (75840025).
- HDPE threaded nipple fitting 1.¼” (75840032).
- HDPE threaded nipple fitting 1.½” (75840040).
- HDPE threaded nipple fitting 2″ (75840050).
- HDPE threaded nipple fitting 2.½” (75840065).
- HDPE threaded nipple fitting 3″ (75840080).
- HDPE threaded nipple fitting 4″ (75840100).
BSP Threaded Reducing Nipple Fittings:
- HDPE threaded reducing nipple fitting ½” to 3/8″ (75941510).
- HDPE threaded reducing nipple fitting ¾” to ½” (75942015).
- HDPE threaded reducing nipple fitting 1″ to ½” (75942515).
- HDPE threaded reducing nipple fitting 1″ to ¾” (75942520).
- HDPE threaded reducing nipple fitting 1.¼” to 1″ (75943225).
- HDPE threaded reducing nipple fitting 1.½” to ¾” (75944020).
- HDPE threaded reducing nipple fitting 1.½” to 1″ (75944025).
- HDPE threaded reducing nipple fitting 1.½” to 1.¼” (75944032).
- HDPE threaded reducing nipple fitting 2″ to 1″ (75945025).
- HDPE threaded reducing nipple fitting 2″ to 1.¼” (75945032).
- HDPE threaded reducing nipple fitting 2″ to 1.½” (75945040).
- HDPE threaded reducing nipple fitting 2.½” to 2″ (75946550).
- HDPE threaded reducing nipple fitting 3″ to 2″ (75948050).
- HDPE threaded reducing nipple fitting 3″ to 2.½” (75948065).
- HDPE threaded reducing nipple fitting 4″ to 2″ (75941050).
- HDPE threaded reducing nipple fitting 4″ to 2.½” (75941065).
- HDPE threaded reducing nipple fitting 4″ to 3″ (75941080).
BSP Threaded Plug Fittings:
- HDPE threaded plug fitting ½” (75240015).
- HDPE threaded plug fitting ¾” (75240020).
- HDPE threaded plug fitting 1″ (75240025).
- HDPE threaded plug fitting 1.¼” (75240032).
- HDPE threaded plug fitting 1.½” (75240040).
- HDPE threaded plug fitting 2″ (75240050).
- HDPE threaded plug fitting 2.½” (75240065).
- HDPE threaded plug fitting 3″ (75240080).
- HDPE threaded plug fitting 4″ (75240100).
BSP Threaded Cap Fittings:
- HDPE threaded cap fitting ½” (75340015).
- HDPE threaded cap fitting ¾” (75340020).
- HDPE threaded cap fitting 1″ (75340025).
- HDPE threaded cap fitting 1.¼” (75340032).
- HDPE threaded cap fitting 1.½” (75340040).
- HDPE threaded cap fitting 2″ (75340050).
- HDPE threaded cap fitting 2.½” (75340065).
BSP Threaded Socket Fittings:
- HDPE threaded socket fitting ½” (75440015).
- HDPE threaded socket fitting ¾” (75440020).
- HDPE threaded socket fitting 1″ (75440025).
- HDPE threaded socket fitting 1.¼” (75440032).
- HDPE threaded socket fitting 1.½” (75440040).
- HDPE threaded socket fitting 2″ (75440050).
- HDPE threaded socket fitting 2.½” (75440065).
- HDPE threaded socket fitting 3″ (75440080).
- HDPE threaded socket fitting 4″ (75440100).
BSP Threaded Reducing Socket Fittings:
- HDPE threaded reducing socket fitting ¾” to ½” (75542015).
- HDPE threaded reducing socket fitting 1″ to ¾” (75542520).
- HDPE threaded reducing socket fitting 1.¼” to 1″ (75543225).
- HDPE threaded reducing socket fitting 1.½” to 1.¼” (75544032).
- HDPE threaded reducing socket fitting 2″ to ¾” (75545020).
- HDPE threaded reducing socket fitting 2″ to 1.½” (75545040).
- HDPE threaded reducing socket fitting 2.½” to 2″ (75546550).
- HDPE threaded reducing socket fitting 3″ to 2″ (75548050).
- HDPE threaded reducing socket fitting 3″ to 2.½” (75548065).
- HDPE threaded reducing socket fitting 4″ to 2.½” (75541065).
BSP Threaded Reducing Male-Female Fittings:
- HDPE threaded reducing male-female fitting ½” to 3/8″ (75641510).
- HDPE threaded reducing male-female fitting ¾” to ½” (75642015).
- HDPE threaded reducing male-female fitting 1″ to ½” (75642515).
- HDPE threaded reducing male-female fitting 1″ to ¾” (75642520).
- HDPE threaded reducing male-female fitting 1.¼” to 1″ (75643225).
- HDPE threaded reducing male-female fitting 1.½” to 1.¼” (75644032).
- HDPE threaded reducing male-female fitting 2″ to 1.½” (75645040).
BSP Threaded Reducing Bush Fittings:
- HDPE threaded reducing bush fitting ½” to ¼” (75741510).
- HDPE threaded reducing bush fitting ½” to 3/8″ (75741510).
- HDPE threaded reducing bush fitting ¾” to ½” (75742015).
- HDPE threaded reducing bush fitting 1″ to ½” (75742515).
- HDPE threaded reducing bush fitting 1″ to ¾” (75742520).
- HDPE threaded reducing bush fitting 1.¼” to ½” (75743015).
- HDPE threaded reducing bush fitting 1.¼” to ¾” (75743020).
- HDPE threaded reducing bush fitting 1.¼” to 1″ (75743025).
- HDPE threaded reducing bush fitting 1.½” to ¾” (75744020).
- HDPE threaded reducing bush fitting 1.½” to 1″ (75744025).
- HDPE threaded reducing bush fitting 1.½” to 1.¼” (75744032).
- HDPE threaded reducing bush fitting 2″ to ¾” (75745020).
- HDPE threaded reducing bush fitting 2″ to 1″ (75745025).
- HDPE threaded reducing bush fitting 2″ to 1.¼” (75745032).
- HDPE threaded reducing bush fitting 2″ to 1.½” (75745040).
- HDPE threaded reducing bush fitting 2.½” to 2″ (75746050).
- HDPE threaded reducing bush fitting 3″ to 1.¼” (75748032).
- HDPE threaded reducing bush fitting 3″ to 1.½” (75748040).
- HDPE threaded reducing bush fitting 3″ to 2″ (75748050).
- HDPE threaded reducing bush fitting 3″ to 2.½” (75748065).
- HDPE threaded reducing bush fitting 4″ to 2″ (75741050).
- HDPE threaded reducing bush fitting 4″ to 2.½” (75741065).
- HDPE threaded reducing bush fitting 4″ to 3″ (75741080).
BSP Threaded Male-Female 90⁰ Bend Fittings:
- HDPE threaded male-female 90⁰ bend fitting ½” (79140015).
- HDPE threaded male-female 90⁰ bend fitting ¾” (79140020).
- HDPE threaded male-female 90⁰ bend fitting 1″ (79140025).
- HDPE threaded male-female 90⁰ bend fitting 2″ (79140050).
BSP Threaded Female Equal Tee Fittings:
- HDPE threaded female equal tee fitting ½” (79240015).
- HDPE threaded female equal tee fitting ¾” (79240020).
- HDPE threaded female equal tee fitting 1″ (79240025).
- HDPE threaded female equal tee fitting 1.¼” (79240032).
- HDPE threaded female equal tee fitting 1.½” (79240040).
- HDPE threaded female equal tee fitting 2″ (79240050).
- HDPE threaded female equal tee fitting 3″ (79240080).
BSP Threaded Female 90⁰ Elbow Fittings:
- HDPE threaded female 90⁰ elbow fitting ½” (7934.0015).
- HDPE threaded female 90⁰ elbow fitting 1″ (7934.0025).
- HDPE threaded female 90⁰ elbow fitting 2″ (7934.0050).
- HDPE threaded female 90⁰ elbow fitting 2.½” (7934.0065).
- HDPE threaded female 90⁰ elbow fitting 3″ (7934.0080).
