ACU-WATER: Leading the Way in HDPE Drinking Water Pipeline Solutions

Providing quality drinking water to people is of global importance, and a core part of our business is to provide piping solutions for water applications that are economical and environmentally sustainable.

The Acu-Water Piping System Blue Line Poly Pipe is the No. 1 choice for all water supply lines, providing flexibility, longevity and economy.

Many of Perth’s ageing water mains are being replaced with HDPE pipe, reducing leakage and ensuring low maintenance in future. Acu-Tech’s Acu-Water PE pipe has been extensively used throughout Perth City and throughout the old northern suburbs.

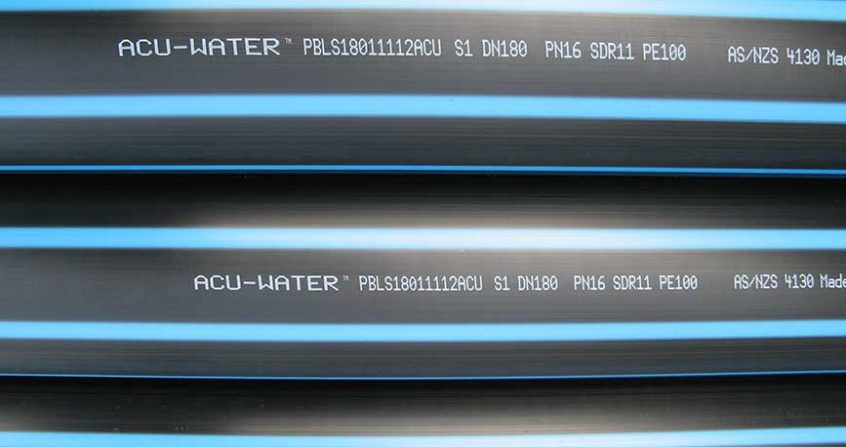

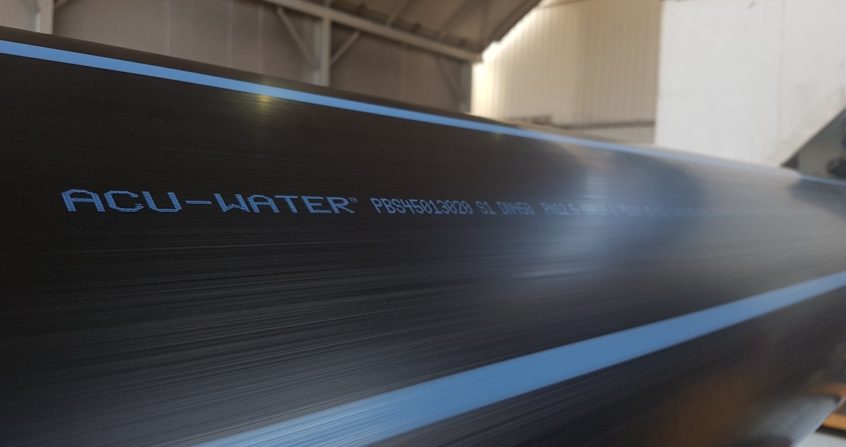

Acu-Water HDPE pipe is fully pressure rated, has Watermark approval, and can be fusion joined using electrofusion couplings, or butt welded. The black pipe with blue stripe helps identification as potable water pipe, and Pipe Marking Tape is also available.

Polyethylene water pipe comes in 6 or 12 meter lengths, or can be made to order in custom lengths, also coming in coils of 50 to 200 meters. Acu-Tech’s quality of service and flexibility as a WA manufacturer means Acu-Water is a very popular piping product.

With the large range of fittings, accessories, hire equipment, and training, Acu-Tech is your one-stop-shop for HDPE piping products.

Key Features & Benefits

  • Suitable for installation according to AS 3500.1:2003 “Water services”
  • Blue Stripe for easy identification
  • Heat-fused jointing systems create a monolithic structure that is stronger than the pipe itself, and completely leak-free. This eliminates rubber seals which can fail over time, also solving root intrusion problems, and provides pipeline integrity where installed in unstable ground. No dangerous chemicals or glues involved in jointing.
  • No anchor or thrust blocks are needed to prevent joint blow-out when using heat fusion welded jointing. Correctly made heat fusion joints may be expected to last the life of the system and withstand thrust/end loads equal to the strength of the pipe/ fitting without adding external restraint or thrust blocking.
  • Extreme flexibility of pipe allows cold bending to accommodate minor changes in direction.
  • Large range of fittings available, providing flexibility of design.
  • Pressure rating of PN12.5 (1250 kPa) or PN16 (1600 kPa) at 20°C, including safety factor of 1.25.
  • Manufactured to AS/NZS 4130 “Polyethylene – PE – pipes for pressure applications” and AS/NZS 4129 “Fittings for polyethylene (PE) pipes for pressure applications”

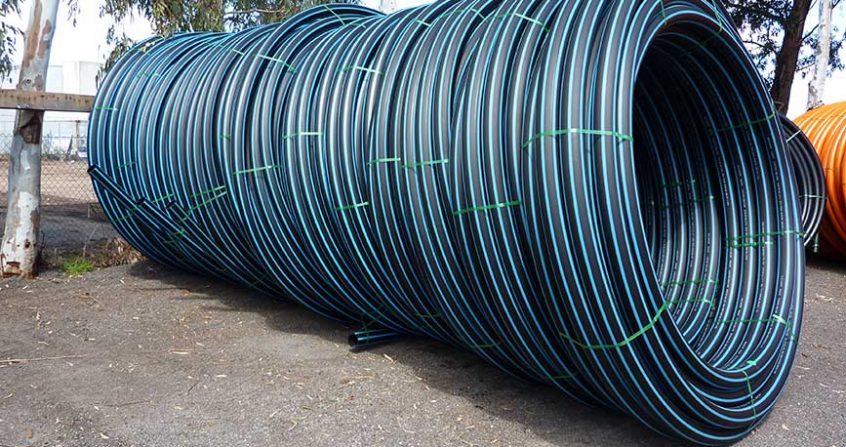

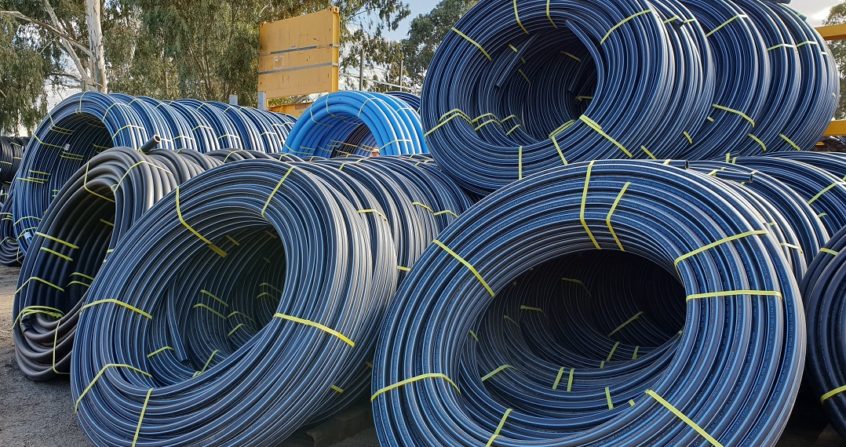

  • 20 mm to 110 mm diameter polyethylene water pipe is available in 50, 100, 150 and 200 metre coils. Larger diameters and custom lengths can be coiled to order.
  • 25 mm to 630 mm diameter PE water pipe is generally available in 6 and 12 metre lengths. Lengths up to 22 metres made to order.
  • Acu-Water HDPE pipe can be joined with electrofusion fittings, butt welding equipment or compression fittings.

Looking for hdpe welding training course? Visit Polyweld Tech Academy

Black HDPE pipe with Blue stripe – sizes below are available in SDR7.4, SDR9, SDR11, SDR13.6:
  • Acu-Water HDPE pipe DN20 mm (PBS020##100). – exchange the ## for the SDR.
  • Acu-Water HDPE pipe DN25 mm (PBS025##100).
  • Acu-Water HDPE pipe DN32 mm (PBS032##100).
  • Acu-Water HDPE pipe DN40 mm (PBS040##100).
  • Acu-Water HDPE pipe DN50 mm (PBS050##100).
  • Acu-Water HDPE pipe DN63 mm (PBS063##100).
  • Acu-Water HDPE pipe DN75 mm (PBS075##100).
  • Acu-Water HDPE pipe DN90 mm (PBS090##100).
  • Acu-Water HDPE pipe DN110 mm (PBS110##100).
  • Acu-Water HDPE pipe DN125 mm (PBS125##100).
  • Acu-Water HDPE pipe DN140 mm (PBS140##100).
  • Acu-Water HDPE pipe DN160 mm (PBS160##100).
  • Acu-Water HDPE pipe DN180 mm (PBS180##12).
  • Acu-Water HDPE pipe DN200 mm (PBS200##12).
  • Acu-Water HDPE pipe DN225 mm (PBS225##12).
  • Acu-Water HDPE pipe DN250 mm (PBS250##12).
  • Acu-Water HDPE pipe DN280 mm (PBS280##12).
  • Acu-Water HDPE pipe DN315 mm (PBS315##12).
  • Acu-Water HDPE pipe DN355 mm (PBS355##12).
  • Acu-Water HDPE pipe DN400 mm (PBS400##12).
  • Acu-Water HDPE pipe DN450 mm (PBS450##12).
  • Acu-Water HDPE pipe DN500 mm (PBS500##12).
  • Acu-Water HDPE pipe DN560 mm (PBS560##12).
  • Acu-Water HDPE pipe DN630 mm (PBS630##12).
  • Acu-Water HDPE pipe DN710 mm (PBS710##12).
  • Acu-Water HDPE pipe DN800 mm (PBS800##12).

Product Fact Sheet

Download our Product Fact Sheet Here HDPE Pipe Systems Catalogue
Download the Acu-Tech Product Catalogue for a full list of dimensions: HDPE Pipe Systems Catalogue

We’re Here to assist you.

Our team is always ready for enquiries or consultations.

Assisting contractors and procurement officers Australia-wide, Acu-Tech Piping Systems’ sales team has extensive experience in water pipeline sourcing for different systems.

Feel free to tap into our team’s wealth of knowledge for advice and guidance.

You can contact us by phone on 08 9238 8000.

Alternatively, you can send us an email by clicking here.

Our team will ensure that your enquiry is given proper attention and dealt with promptly.

This Acu-Water product is also available from our Brisbane HDPE pipe manufacturing plant, which has the capacity to manufacture HDPE pipe for water in Queensland.

As a QLD pipe manufacturer, Acu-Tech is a HDPE blueline pipe supplier in Brisbane, providing blue stripe polyethylene pipe for water mains.

To buy Acu-Water blue striped PE pipe from our Brisbane pipe manufacturing plant, contact us today on (07) 3185 5583.
