ACU-GAS – Making Gas Pipeline Installation a Breeze!

Gas distribution is an important sector for high integrity products where the safe transport of gaseous fuels is of paramount importance. Acu-Gas HDPE pipe is the system of choice for below-ground natural and LP gas mains and distribution pipelines.

Acu-Tech has forged strong relationships with both gas-fitters and gas utilities over many years. We offer support, training and advice on complete package solutions.

Key features and benefits:

  • Approved for below ground installations under AS 5601-2004: Gas Installations
  • Full yellow coating for clear identification

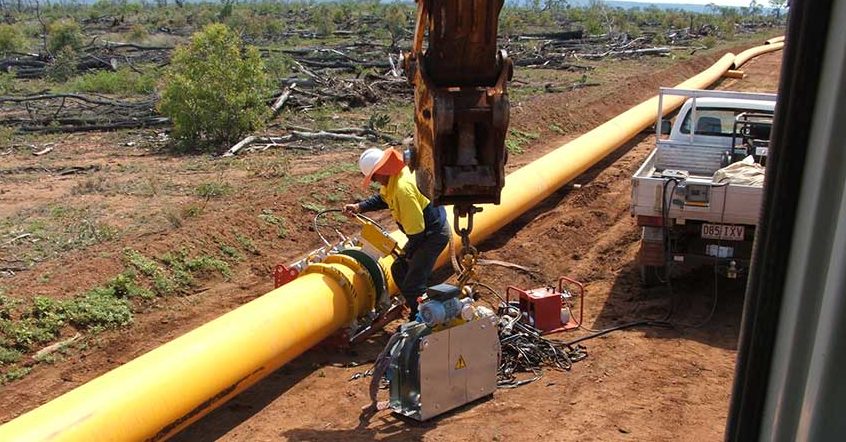

  • Electrofusion or butt fusion jointing method creates a completely homogeneous joint which is stronger than the pipe itself.
  • Integrity and durability proven in the field by utilities Australia wide.
  • Flexibility of pipe allows cold bending to accommodate minor changes in direction, and also accommodates ground movement.
  • Manufactured to AS/NZS 4130 “Polyethylene – PE – pipes for pressure applications” and AS/NZS 4129 “Fittings for polyethylene (PE) pipes for pressure applications”
  • Acu-Gas is available in 20, 40, 63, 110, 160 and 225 mm diameters as standard stock items. Larger sizes made to order.

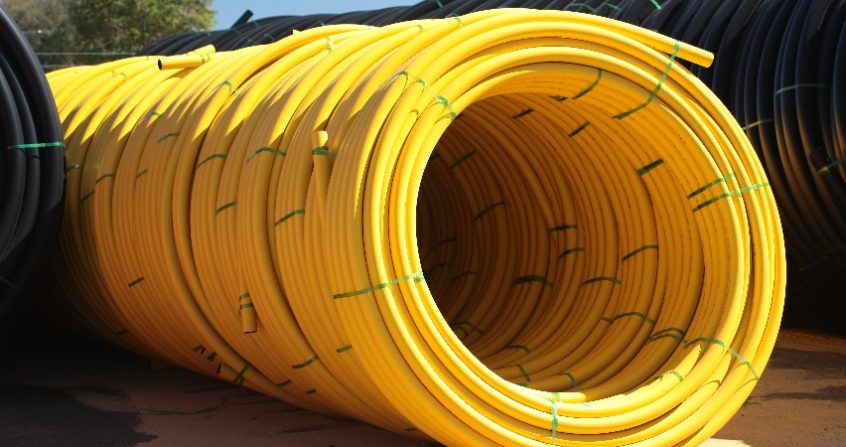

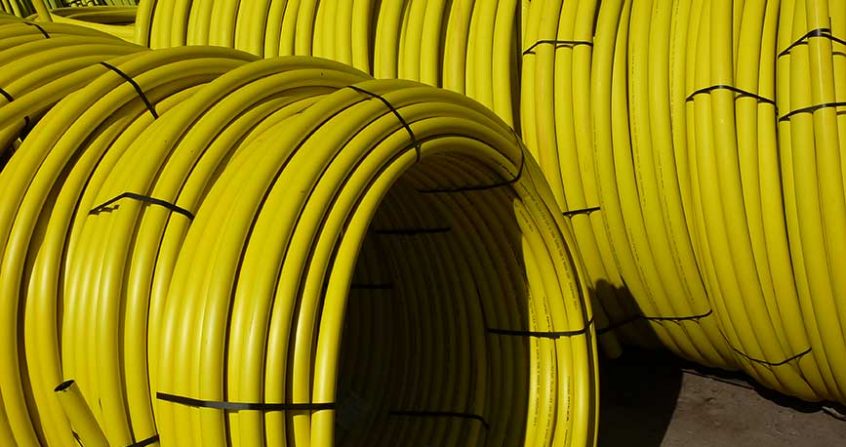

  • Coils of up to 100 metres are available in 20, 40, 63 and 110 mm diameters, vastly reducing the amount of joints in a pipeline
  • The relatively light weight of Acu-Gas makes it easy to transport, handle and install, offering overall project savings.
  • Electrofusion fittings can be used to weld gas pipe lengths, including using mechanical tapping bands, gas tapping saddles and branch saddles.
  • Very high safety factor: According to AS5601-2004, operating limit is 200 kPa, whereas the hydrostatic design pressure for Acu-Gas SDR11 pipe is 2000 kPa (before safety factor).
  • Live main self-tapping electrofusion tapping saddle fittings available for “hot tap-ins”.
  • Electrofusion welding equipment can be used for joining HDPE gas pipe, as well as hdpe pipe scrapers or turbo pipe scrapers, isopropyl welding wipes, and towing heads for HDD.
  • Gas flow through Acu-Gas pipe can be stopped by using a “squeeze-off” tool, where interruption is required for emergency, repair or tee-in operations etc.

Yellow HDPE gas pipe – sizes below can be made in SDR7.4, SDR9, SDR11, SDR13.6, SDR17:

  • Acu-Gas HDPE pipe DN20 mm (PYJ020##100). – exchange the ## for the SDR.
  • Acu-Gas HDPE pipe DN25 mm (PYJ025##100).
  • Acu-Gas HDPE pipe DN32 mm (PYJ032##100).
  • Acu-Gas HDPE pipe DN40 mm (PYJ040##100).
  • Acu-Gas HDPE pipe DN50 mm (PYJ050##100).
  • Acu-Gas HDPE pipe DN63 mm (PYJ063##100).
  • Acu-Gas HDPE pipe DN75 mm (PYJ075##100).
  • Acu-Gas HDPE pipe DN90 mm (PYJ090##100).
  • Acu-Gas HDPE pipe DN110 mm (PYJ110##100).
  • Acu-Gas HDPE pipe DN125 mm (PYJ125##100).
  • Acu-Gas HDPE pipe DN140 mm (PYJ140##100).
  • Acu-Gas HDPE pipe DN160 mm (PYJ160##100).
  • Acu-Gas HDPE pipe DN180 mm (PYJ180##12).
  • Acu-Gas HDPE pipe DN200 mm (PYJ200##12).
  • Acu-Gas HDPE pipe DN225 mm (PYJ225##12).
  • Acu-Gas HDPE pipe DN250 mm (PYJ250##12).
  • Acu-Gas HDPE pipe DN280 mm (PYJ280##12).
  • Acu-Gas HDPE pipe DN315 mm (PYJ315##12).
  • Acu-Gas HDPE pipe DN355 mm (PYJ355##12).
  • Acu-Gas HDPE pipe DN400 mm (PYJ400##12).
  • Acu-Gas HDPE pipe DN450 mm (PYJ450##12).
  • Acu-Gas HDPE pipe DN500 mm (PYJ500##12).
  • Acu-Gas HDPE pipe DN560 mm (PYJ560##12).
  • Acu-Gas HDPE pipe DN630 mm (PYJ630##12).
  • Acu-Gas HDPE pipe DN710 mm (PYJ710##12).
  • Acu-Gas HDPE pipe DN800 mm (PYJ800##12).

Download the Acu-Gas Product Flyer:

Download the Acu-Tech Product Catalogue for a full list of dimensions:

HDPE Pipe Systems Catalogue

Helping You

If you need advice or guidance, we’re here to help.

Acu-Tech Piping Systems’ sales team have extensive experience in the supply of acu gas poly pipe for gas-fitters and utilities. We encourage you to tap into this wealth of knowledge for advice and guidance. Our sales office is ready to take your call on 08 9238 8000 and will ensure that your enquiry is dealt with promptly. Alternatively, to send a message please click here.
