Product Description

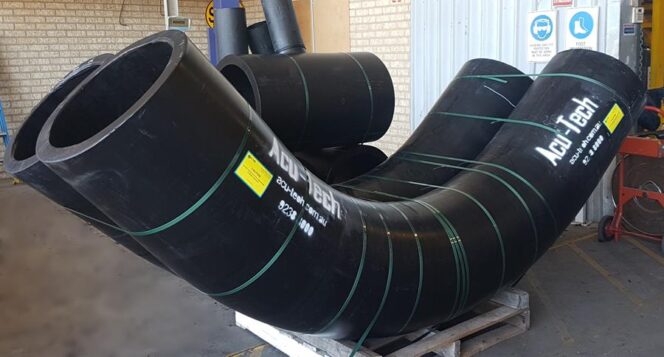

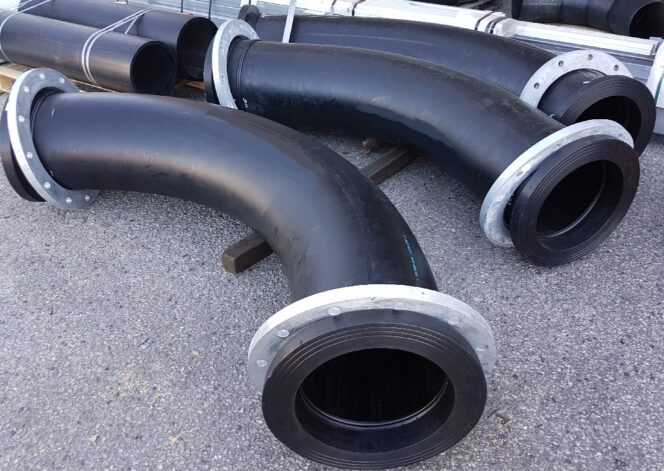

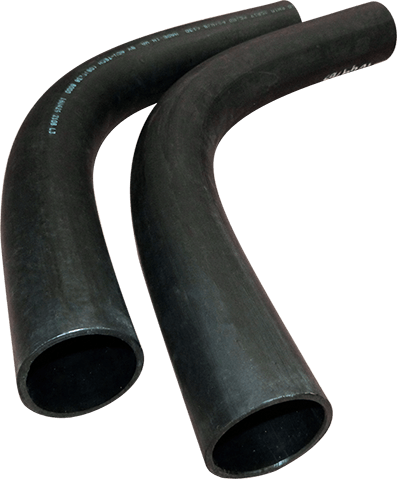

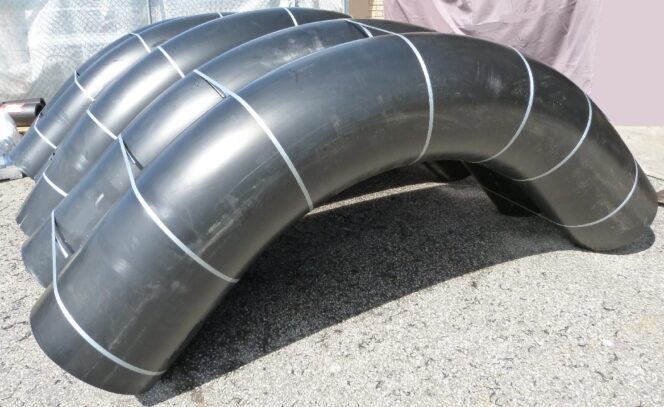

Sweep Bends are one of Acu-Tech’s specialities! With a fully equipped PE fabrication workshop and experienced and qualified operators, Acu-Tech Piping Systems fabricates PE sweep bends, spools and components from pipe and sheet to client specifications. Acu-Tech’s fabricated poly sweep bends range in size from 30 mm to 800 mm, and can be manufactured from Acu-Black or Acu-Therm material, meaning a co-ex white pipeline can have a matching co-ex white bend! HDPE sweep bends can also be custom made in blueline stripe, or any other colour. Acu-Tech stocks the standard sizes and angles of HDPE sweep bends, but can also manufacture custom sweep bends to suit your specification. Seamless long radius HDPE sweep bends can be made with flanged ends, or with extra pipe length to allow space for electrofusion welding. The method for fabricating PE sweep bends is mentioned in PIPA document ‘PE Fabricated Fittings For Pressure Applications: De-rating Requirements’: Sweep bends are manufactured by heating a single section of pipe, ranging from SDR21 to SDR9, and then using a forming tool to reshape the heated area. Typically the pipe segment to be shaped is immersed in a hot liquid bath or hot air oven and heated to make it pliable. It’s then removed from the heat source and reshaped in the forming tool. Care must be taken to hold the new shape without any induced stress until the part has sufficiently cooled. These manufacturing methods result in single piece bends at any angle up to 90°. Sweep bends are operated at the full pressure rating of the pipe without the need for de-rating, provided the minimum wall thickness of the fitting (taking into account wall thinning at the bend) complies with the requirements of AS/NZS 4130, for the rated nominal pressure of the pipeline. Our extensive HDPE fabrication capabilities includes sweep bends, junctions, concentric reducers, mitred tees, launders, manifolds, elbow pipe, true Y pieces, equal and reducing tees, and segmented bends ranging in size from 25 mm – 800 mm.  For any other requirements and for fabricated items that are less common and not mentioned our catalogue, feel free to contact us and we will gladly assist. See photos and more information at www.acu-tech.com.au/custom-fabrication/ Size and angle of sweep bends available from Acu-Tech Piping Systems:
  • 32 mm HDPE elbow – manufactured poly sweep bend up to 90°.
  • 40 mm HDPE elbow – manufactured poly sweep bend up to 90°.
  • 50 mm HDPE elbow – manufactured poly sweep bend up to 90°.
  • 56 mm HDPE elbow – manufactured poly sweep bend up to 90°.
  • 63 mm HDPE elbow – manufactured poly sweep bend up to 90°.
  • 75 mm HDPE elbow – manufactured poly sweep bend up to 90°.
  • 90 mm HDPE elbow – manufactured poly sweep bend up to 90°.
  • 110 mm HDPE elbow – manufactured poly sweep bend up to 90°.
  • 125 mm HDPE elbow – manufactured poly sweep bend up to 90°.
  • 160 mm HDPE elbow – manufactured poly sweep bend up to 90°.
  • 200 mm HDPE elbow – manufactured poly sweep bend up to 90°.
  • 250 mm HDPE elbow – manufactured poly sweep bend up to 90°.
  • 315 mm HDPE elbow – manufactured poly sweep bend up to 90°.
  • 355 mm HDPE elbow – manufactured poly sweep bend up to 90°.
  • 400 mm HDPE elbow – manufactured poly sweep bend up to 90°.
  • 450 mm HDPE elbow – manufactured poly sweep bend up to 90°.
  • 500 mm HDPE elbow – manufactured poly sweep bend up to 90°.
  • 560 mm HDPE elbow – manufactured poly sweep bend up to 90°.
  • 630 mm HDPE elbow – manufactured poly sweep bend up to 90°.
  • 710 mm HDPE elbow – manufactured poly sweep bend up to 90°.
  • 800 mm HDPE elbow – manufactured poly sweep bend up to 90°.


THE ACU-TECH DIFFERENCE

Short Lead Times We understand how most of our clients work with tight deadlines, and we endeavour to complete our requirements on time and deliver what we promise. For very urgent jobs, we have the capability to put on extra shifts to help our clients meet the target date. We understand that a consistent and reliable supply of polyethylene pipe fittings facilitates our customers being able to install HDPE pipe on the job site without delays. Design Support HDPE components are only limited by the imagination. Having decades of experience in providing bespoke, pre-fabricated solutions, fabrication complexity is a challenge we enjoy. Discuss your required custom made PE pipe fittings with our friendly Perth team. Quality Assurance and Documentation Our services go beyond providing bespoke PE fabricated fittings. We ensure that all pertinent QA/QC documentation requirements are fully accomplished and you can rely on us from meeting the requirements of ISO 9001 to having the components tested.

Helping You

If you need advice or guidance, we’re here to help. Acu-Tech Piping Systems’ sales team have extensive experience in supplying fabrication services. We encourage you to tap into this wealth of knowledge for advice and guidance. Our sales office is ready to take your call on 08 9238 8000 and will ensure that your enquiry is dealt with promptly. Alternatively, to send a message please click here.
