HDPE Drain Pipe Fittings

Acu-Tech sells a wide range of poly pipe and fittings for drainage application. These are non-pressure pipes suited for drainage and wastewater in industrial or building applications. While they look similar with their fully black exterior, Acu-Drain is different to Acu-Black pressure pipe – Acu-Drain poly pipe is not pressure pipe, and is designed for wastewater pipelines. Acu-Drain fittings are consequently designed to use gravity to drain water and waste from the pipeline. This is why 90⁰ drainage fittings are actually 88.5⁰ fittings, to allow the water & waste to travel slightly downhill. Acu-Drain drainage pipe can be joined with Electrofusion drainage fittings, which are specially made for non-pressure pipe, with the welding voltage being a lot lower than pressure pipe welding, due to the thinner wall polyethylene drainage pipe. Other joining methods are possible, but drainage electrofusion couplers are the most suitable for welding black drainage pipe lengths. For convenience and for bulk orders, Acu-Tech can supply polyethylene pipe fittings that have been pre-welded in P trap configurations, S traps, and other combinations. Please contact us on 1300 270 270 if you need a custom configuration – our team will surely be able to make your job easier!

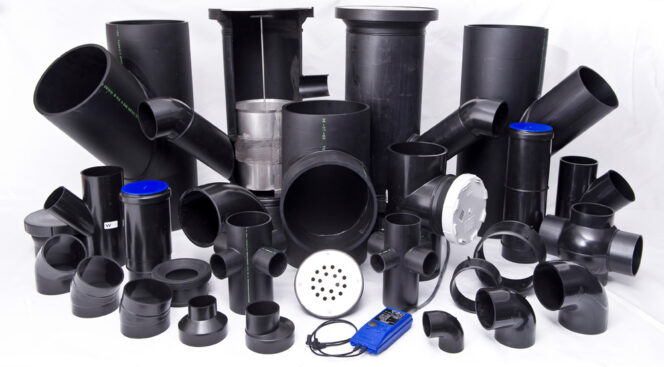

Acu-Tech’s complete range of HDPE drainage items includes:

• Sweep bends, including 15⁰, 30⁰, 45⁰ and 88.5⁰ bends.
• Segmented bends, including 5⁰ bend, 15⁰ bend, 30⁰ bend, 45⁰ bend, 60⁰ bend, and 90⁰ bends.
• Junctions – 45⁰ junctions and double junctions, 88.5⁰ double junction, swept junctions and fabricated junctions.
• Expansion sockets and ring seal sockets.
• Couplings, including EF couplings for drainage purposes.
• Palazzi traps, adjustable P traps, S traps, and S&P combination traps.
• In-pipe adaptors and horizontal inspection access pipes.
• Eccentric and concentric reducers.
• End caps and stop ends.
• Bucket traps and WC pan collars.
• Stub flange adaptors, 4-way risers and thread adaptors.
• HDPE adaptors for copper or DWV.
• Custom-made puddle flanges,
• Floor grates and tap screws
• As well as an assortment of accessories and extras – bolt sets, gaskets, backing flanges, welding machines, polyweld wipes and pipe scrapers.

Acu-Drain HDPE drainage pipe comes in the following sizes:

• 50 mm poly drain pipe SDR 26, 40 NB (300005) – Pack 10 x 5 meter lengths.
• 56 mm poly drain pipe SDR 26, 50 NB (300006) – Pack 10 x 5 meter lengths.
• 63 mm poly drain pipe SDR 26, 50 NB (300007) – Pack 10 x 5 meter lengths.
• 75 mm poly drain pipe SDR 26, 65 NB (300009) – Pack 10 x 5 meter lengths.
• 90 mm poly drain pipe SDR 26, 80 NB (300011) – Pack 10 x 5 meter lengths.
• 110 mm poly drain pipe SDR 26, 100 NB (300013) – Pack 10 x 5 meter lengths.
• 125 mm poly drain pipe SDR 26, 115 NB (300015) – Pack 5 x 5 meter lengths.
• 160 mm poly drain pipe SDR 26, 150 NB (300017) – Pack 5 x 5 meter lengths.
• For larger sizes, see the Acu-Drain drainage pipe page.

View our full range of polyethylene pipe and fittings in the drainage catalogue!
