Product Description

Acu-Tech is a distributor for a range of German Sheet Butt Welders. These sheet butt welding machines are used to join PE sheet end-to-end, and are built by INGENIA GmbH – a mechanical engineering company which has developed over the past 20 years into a globally recognized and sought-after supplier in thermoplastic welding and bending technology. These state-of-the-art products combine reliability and ruggedness and will meet the high quality demands placed on them.

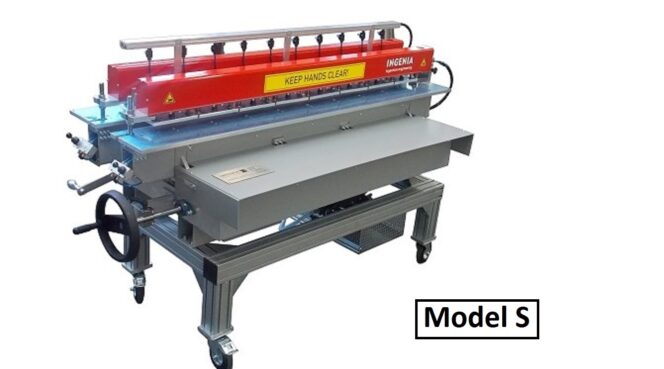

Model S – Hand Executed
The Model S hand welding machine is suitable as a basic introductory model for PE sheet welding needs. The welding cycle is hand-executed, and the machine is highly portable, meaning it can be stored out of the way when not in use, as well as reducing manual handling of poly sheet. This machine is also available, as an option, with a manual 90° welding fixture. The Model S machine comes in the following versions:
  • Working width 1.50 m up to a 20 mm material thickness.
  • Working width 2.0 m up to a 15 mm material thickness.

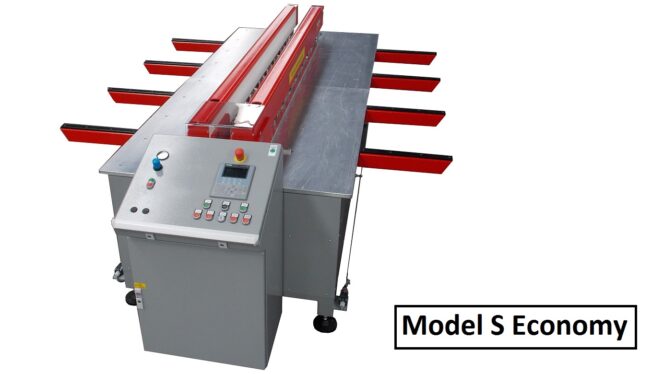

Model S – Economy
The Model S economy series sheet welding machine has been devised for middle range usage. The machine is controlled by an integrated PLC. During welding, all the time parameters set by the operator can easily be lengthened or shortened with the touch of a button. Model S machines are fitted out with a CNC table force controller, including database. They can also be provided with an automatic 90° welding fixture upon request. The Model S economy machine comes in the following versions:
  • 2 m, 3 m and 4 m or customized.
  • Weldable thicknesses: 3 – 25 mm.

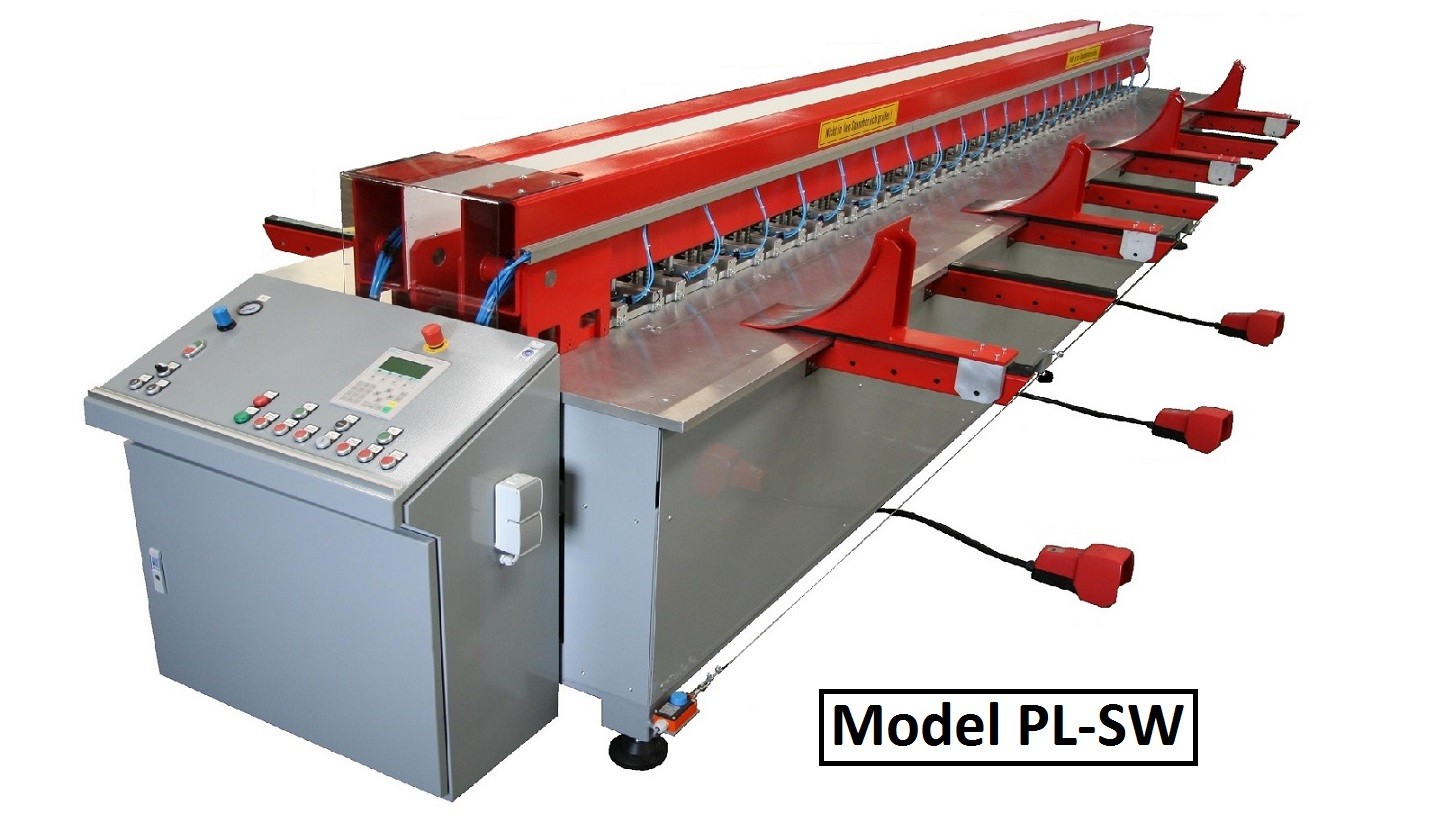

Model PL-SW
The Model PL-SW poly sheet welder range has been designed to suit the maximum demands placed on quality and capacity. This version has two clamping ranges on each table side, as well as a travel measurement device and a travel controller. Model PL-SW machines are fitted out with a CNC table force controller, including database. They can also be provided with an automatic 90° welding fixture at the customer’s request. The welding cycle of this machine runs automatically. The Model PL-SW machine comes in the following versions:
  • 2 m, 3 m, 4 m, 5 m or 6 m.
  • Weldable thicknesses: 3 – 60 mm.
