Product Description

PE electrical and telecommunications conduit

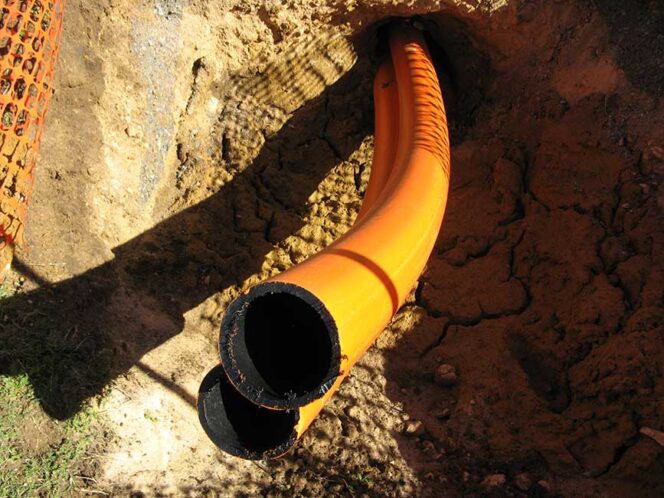

Acu-Power and Acu-Comms conduit can be installed below ground by a variety of methods, including directional drilling, ploughing, and open trench.  Also, its flexibility and availability in continuous coiled lengths facilitates installation into existing conduits or ducts as inner-duct. HDPE pipe is much more flexible than PVC pipe, and can be installed by directional drilling, or dozer direct-bury, something which could not be done with PVC conduit.

Cable conduit is manufactured from HDPE, with a coloured outer layer, known as coex (co-extruded), for easy identification. Electrical HDPE orange coex is used for electrical cable protection, and comms HDPE white coex is used for communications cable protection. visual early warning tape is available to lay in the ground above the conduit, to avoid damage by excavation. See www.acu-tech.com.au/products/pipe-marking-tape/ for pipe marking tape suited for telecommunications conduit and electrical conduit.

FEATURES AND BENEFITS:

  • Bright colour coding; co-extruded outer layer for clear identification – orange (ACU-POWER) or white (ACU-COMMS).

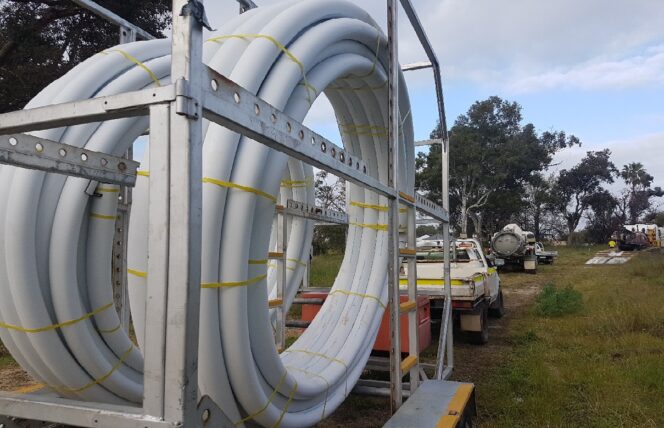

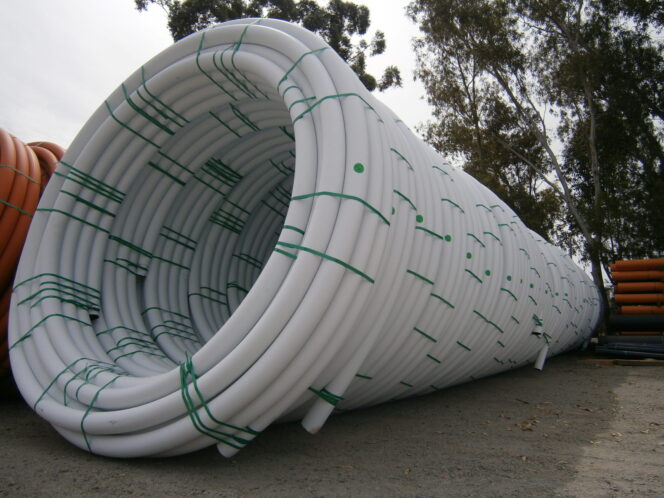

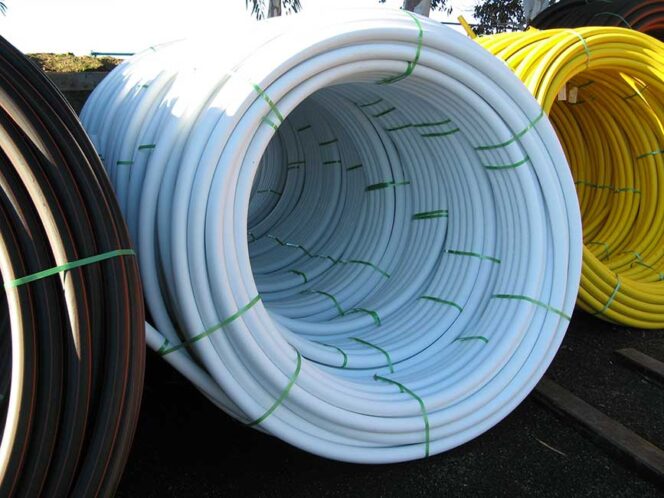

  • Supplied in coils which reduces the number of joints and fittings required.
  • Cost effective installation, particularly using trench-less technology.

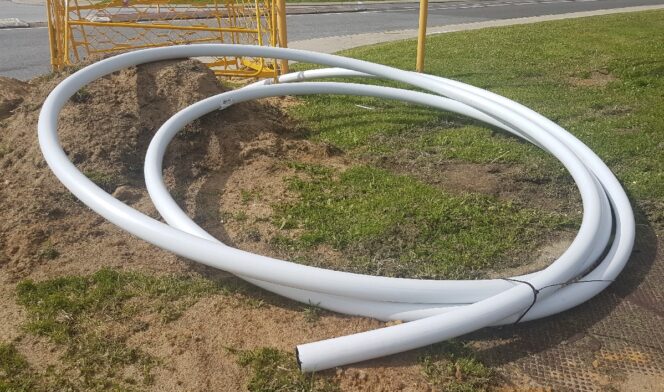

  • High strength and flexibility allows cold bending.
  • Lightweight and quick to install.
  • High quality – extremely tough and durable.
  • Manufactured from High Density Polyethylene (HDPE).
  • ‘Elec HDPE Orange Coex’ is HDPE electrical conduit (Acu-Power) orange co-ex pipe.

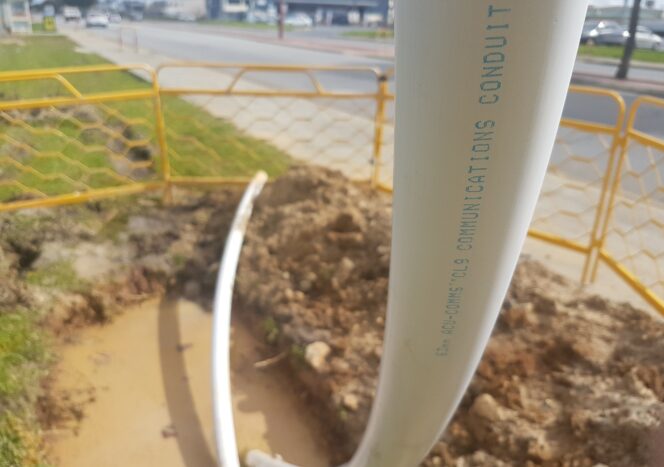

  • ‘Comm HDPE White Coex’ is HDPE communications conduit (Acu-Comms) white co-ex pipe.
  • Trench-less installation greatly reduces environmental impact caused by excavation.

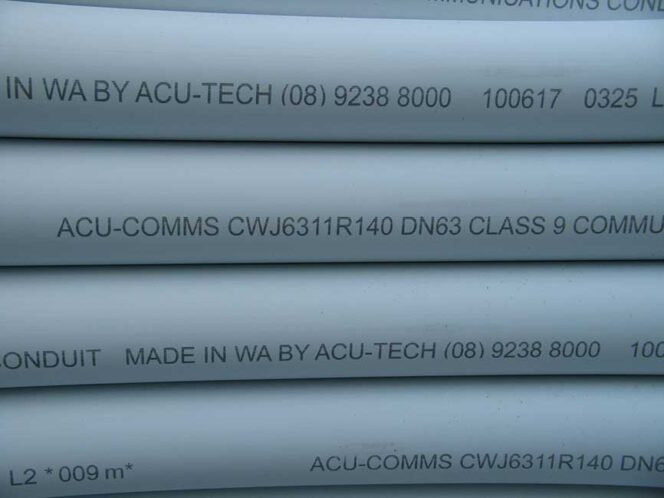

  • Branded ACU-POWER or ACU-COMMS.

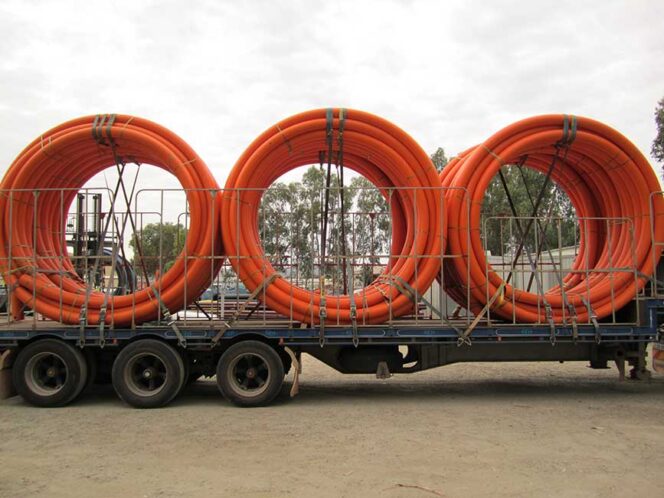

  • Acu-Tech transport can deliver to site for a small fee, with HIAB unloading.
  • To find out HDPE conduit coil weight, refer to our HDPE catalogue on the downloads page.



Acu-Comms communications conduit comes in the following sizes and lengths:

Conduit DiameterConduit Length
32mm150m
63mm140m & 200m
110mm100m

Acu-Power electrical conduit is available in the following sizes and lengths:

Conduit DiameterCoil Length
50mm150m
63mm140m & 200m
90mm100m
110mm100m
125mm100m
140mm100m
160mm80m & 100m

Download the latest version of our Acu-Power and Acu-Comms Catalogue:

Acu-Comms Poly Communications Conduit Sizes Available:

  • Acu-Comms HDPE white conduit pipe DN32 mm 150m coil (CWJ03212150).
  • Acu-Comms HDPE white conduit pipe DN63 mm 140m coil (CWJ06313140).
  • Acu-Comms HDPE white conduit pipe DN63 mm 200m coil (CWJ06313200).
  • Acu-Comms HDPE white conduit pipe DN110 mm 100m coil (CWJ11013100).
  • Acu-Comms HDPE white conduit pipe DN125 mm 100m coil (CWJ12513100).

Acu-Power Poly Electrical Conduit Sizes Available:

  • Acu-Power HDPE orange conduit pipe DN32 mm 150m coil (COJ03213150).
  • Acu-Power HDPE orange conduit pipe DN50 mm 150m coil (COJ05013150).
  • Acu-Power HDPE orange conduit pipe DN63 mm 140m coil (COJ06313140).
  • Acu-Power HDPE orange conduit pipe DN63 mm 200m coil (COJ06313200).
  • Acu-Power HDPE orange conduit pipe DN90 mm 100m coil (COJ09013100).
  • Acu-Power HDPE orange conduit pipe DN110 mm 100m coil (COJ11013100).
  • Acu-Power HDPE orange conduit pipe DN125 mm 100m coil (COJ12513100).
  • Acu-Power HDPE orange conduit pipe DN140 mm 100m coil (COJ14013100).
  • Acu-Power HDPE orange conduit pipe DN160 mm 80m coil (COJ16013080).
  • Acu-Power HDPE orange conduit pipe DN160 mm 100m coil (COJ16013100).
  • Acu-Power HDPE orange conduit pipe DN180 mm 12m length (COJ1801312).

Acu-Subduct HDPE Subduct Piping Sizes Available:

  • 32mm Acu-Subduct Pipe 500m coil.
