160mm BUTT WELDING – BUTT FUSION MACHINE (Electric Hydraulic Butt Welder)

Hire this 160mm Butt Fusion Welder for welding HDPE pipe between 63mm and 160mm diameter in Electric Hydraulic mode. For use in the field, rent the butt welder with the 5.9 KVA Portable Generator.

Rental comes complete with machine body, extractable heating plate, extractable milling cutter, electro-hydraulic gearcase, heating plate and milling cutter support, tool kit, and Stub End Device (Spider).

** set of inserts OD 63, 75, 90, 110, 125, 140mm, main clamp OD 160mm.

Power Requirements: 2.45Kw – Minimum required of a 3.5kva generator 240v, single phase.

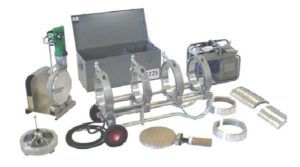

225mm DIXON BUTT FUSION MACHINE (Manual Hydraulic Butt Welder)

Hire this Butt Fusion Welder Machine for welding HDPE pipe between 63mm and 225mm diameter in Manual Hydraulic mode. Hire the butt welder with the 5.9 KVA Portable Generator, for use in the field.

Rental comes complete with the butt welding machine body with MANUAL hydraulic, extractable heating plate, extractable milling cutter, heating plate and cutter support, tool kit, and Stub End Device (Spider).

** set of inserts OD 63, 75, 90, 110, 125, 140mm, 160mm, 180mm, 200mm main clamp OD 225mm.

Power Requirements: Minimum of a 3.5kva generator 240v, single phase.

225mm DIXON BUTT FUSION MACHINE (Electric Hydraulic Butt Welder)

Hire this 225mm Butt Fusion Welder Machine for welding 63mm to 225mm diameter HDPE pipe in Electric Hydraulic mode. For use on site, hire the butt welding equipment with the 5.9 KVA Portable Generator.

Butt Welder Rental comes complete with the machine body, extractable heating plate, extractable milling cutter, electro-hydraulic gearcase, heating plate and cutter support, tool kit, and Stub End Device (Spider).

** set of inserts OD 63, 75, 90, 110, 125, 140mm, 160mm, 180mm, 200mm main clamp OD 225mm.

Power Requirements: Minimum of a 3.5kva generator 240v, single phase.

250mm BUTT FUSION MACHINE (Electric Hydraulic Butt Welder)

Hire this Butt Fusion Machine for welding HDPE pipes between 90mm and 250mm diameter in Electric Hydraulic mode. For use on site, rent butt welder equipment with the 5.9 KVA Portable Generator.

Butt Welding Machine Rental comes complete with the Fusion Welding Machine body, extractable heating plate, extractable milling cutter, electro-hydraulic gearcase, heating plate and cutter support, tool kit, and Stub End Device (Spider).

** set of inserts OD 90, 110, 125, 140, 160, 180, 200, 225mm, main clamp OD 250mm.

Power Requirements: 3.85Kw  – Minimum required of a 5.9kva generator 240v, single phase.

250mm RITMO BUTT FUSION MACHINE (Electric Hydraulic Butt Welder)

Hire this Butt Fusion Machine for welding HDPE pipes between 75mm and 250mm diameter in Electric Hydraulic mode. Rent this Fusion Welder along with the 5.9 KVA Portable Generator for site use.

Butt Welding Equipment comes complete with Butt Welder machine body, extractable heating plate, extractable milling cutter, electro-hydraulic gearcase, heating plate and milling cutter support, tool kit, and Stub End Device (Spider).

** set of inserts OD 75, 90, 110, 125, 140, 160, 180, 200, 225mm, main clamp OD 250mm

Power Requirements: 3.45Kw – Minimum required of a 5.9kva generator 240v, single phase.

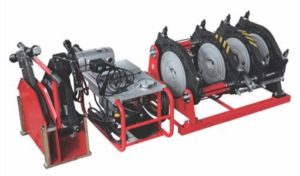

315mm BUTT FUSION MACHINE (Electric Hydraulic Butt Welder)

Hire this Butt Welder for HDPE welding of PE pipe between 90mm and 315mm diameter in Electric Hydraulic mode. Rent this Fusion Welder along with the 6.8 KVA Portable Generator for site use.

The Butt Welder comes complete with the welding machine body, extractable heating plate, extractable milling cutter, electro-hydraulic gearcase, heating plate and milling cutter support, tool kit, and Stub End Device (Spider).

** set of inserts OD 90, 110, 125, 140, 160, 180, 200, 225, 250, 280, main clamp OD 315mm

Power Requirements: 4.85Kw – Minimum required of a 6.5kva generator 240v, single phase.

355mm RITMO BUTT FUSION MACHINE (Electric Hydraulic Butt Welder)

Rent the 355 Ritmo Butt Welder Machine for butt-welding HDPE pipes with an outside diameter between 125mm and 355mm diameter in Electric Hydraulic mode. Contact our team to hire a suitable generator.

The Butt Fusion Machine comes complete with the Butt Welder machine body, extractable heating plate, extractable milling cutter, electro-hydraulic gearcase, heating plate and milling cutter support, tool kit, and Stub End Device (Spider).

** set of inserts OD 125, 140, 160, 180, 200, 225, 250, 280, 315mm, main clamp OD 355mm

Power Requirements: 5.75Kw – Minimum required of a 8kva generator 240v, single phase.

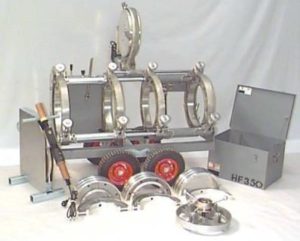

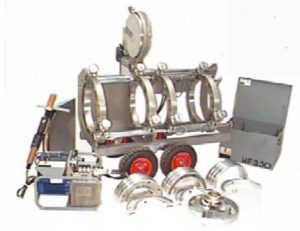

350 DIXON BUTT FUSION MACHINE (Manual Hydraulic Butt Welder)

Rent the 350 Dixon Butt Welder (Manual Hydraulic) for fusion welding HDPE pipes with an outside diameter between 110mm and 355mm diameter in Manual Hydraulic mode. For on-site use, HirHire the Butt Welder along with the 5.9 KVA Portable Generator.

PE Welding Equipment comes complete with machine body, extractable heating plate, milling cutter, MANUAL hydraulics, heating plate support, tool kit, and Stub End Device (Spider).

** set of inserts OD 110, 125, 140, 160, 180, 200, 225, 250, 280, 315mm, main clamp OD 355mm

Power Requirements: Minimum of a 5kva generator 240v, single phase.

350 DIXON BUTT FUSION MACHINE (Electric Hydraulic Butt Welder)

Hire the 350 Dixon Butt Welder (Electric Hydraulic) for fusion welding HDPE pipes with an outside diameter between 110mm and 355mm diameter in Electric Hydraulic mode. Rent this Fusion Welder with the 5.9 KVA Portable Generator for field use.

Butt Fusion Equipment Rental includes the Butt Welder machine body, extractable heating plate, milling cutter, electric-hydraulic gearcase, heating plate and support, and Stub End Device (Spider).

** set of inserts OD 110, 125, 140, 160, 180, 200, 225, 250, 280, 315mm, main clamp OD 355mm

Power Requirements: Minimum of a 5kva generator 240v, single phase.

450mm BUTT FUSION MACHINE (Electric Hydraulic Butt Welder)

Rent the 450 Butt Fusion Welding Machine for butt-welding polyethylene pipes with an outside diameter between 200mm and 450mm diameter in Electric Hydraulic mode. Contact our team to hire a suitable generator, for butt welding in the field.

This Butt Welder comes complete with the machine body, extractable heating plate, extractable milling cutter, electro-hydraulic gearcase, heating plate and milling cutter support, tool kit, and Stub End Device (Spider).

** set of inserts OD 200, 225, 250, 280, 315, 355, 400mm, main clamp OD 450mm

Power Requirements: 8.38Kw – Recommended genset for field operation – 11kva 415v, three phase

630mm BUTT FUSION MACHINE (Electric Hydraulic Butt Welder)

The 630 Butt Welder Machine rental is perfect for butt-welding HDPE pipes with an outside diameter between 315mm and 630mm diameter in Electric Hydraulic mode. Contact our team to hire a suitable generator, for on-site butt welding.

Butt Fusion Welding Equipment Hire includes the machine body, extractable heating plate, extractable milling cutter, electro-hydraulic gearcase, heating plate and milling cutter support, tool kit, and Stub End Device (Spider).

** set of inserts OD 315, 355, 400, 450, 500, 560mm, main clamp OD 630mm

Power Requirements: 12.35Kw – Recommended genset for field operation – 16kva 415v, three phase

630 DIXON BUTT FUSION MACHINE (Electric Hydraulic Butt Welder)

The 630 Dixon Butt Fusion Machine hire is perfect for butt-welding poly pipes with an outside diameter between 315mm and 630mm diameter in Electric Hydraulic mode. The Dixon welder has a lever operated heating plate, and the milling cutter is also hydraulically operated. Contact our team to hire a suitable generator, for butt welding on-site.

Poly Welding Equipment comes complete with machine body on trolley, lever operated heating plate, hydraulic operated milling cutter, and Stub End Device (Spider).

** set of inserts OD 315, 355, 400, 450, 500, 560mm, main clamp OD 630mm

Power Requirements: Recommended genset for field operation – 15kva 415v, three phase

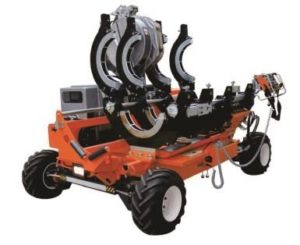

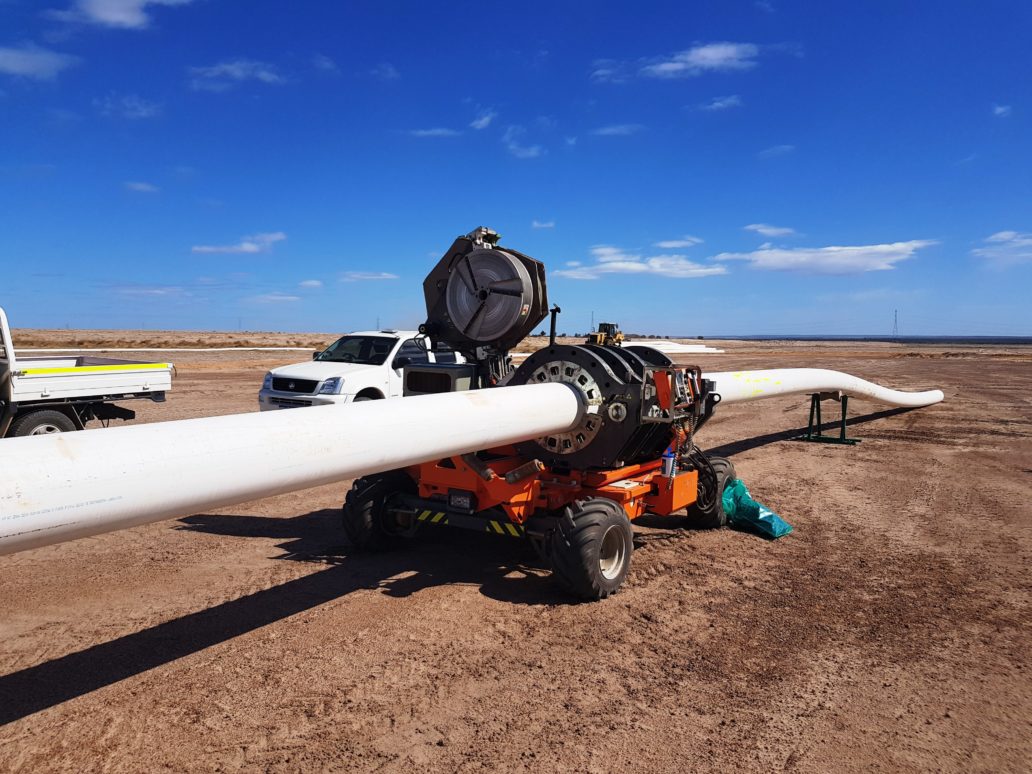

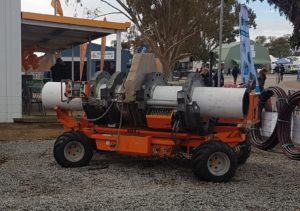

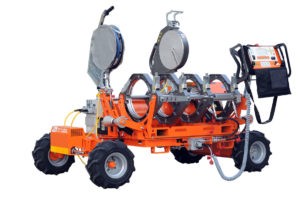

630 RITMO All Terrain BUTT FUSION MACHINE (Self-Contained Hydraulic Butt Welder)

Acu-Tech’s DELTA 630 ALL TERRAIN Butt Welder is powered by a low vibration diesel engine, suitable for welding thermoplastic pipes for the transport of water, gas and other fluids under pressure. The Ritmo Butt Fusion Equipment can weld poly pipes from 225mm to 630 mm. The Butt Welding Machine can fuse pipes according to the ISO 21307 High Pressure standard (pressure range is 3.5 times higher than the ISO Low Pressure ones). This greatly enhances productivity allowing 60% time saving. The All-Terrain welding machine can climb rough terrain up to 30% gradient, with its 4 wheel drive and detachable control panel, which provides extra safety for the operator on rough terrain.

The Butt Welding Machine Rental includes a Stub End Device (Spider), and has a key to prevent unauthorised use. The Delta 630’s 2200 cc Diesel Engine allows the butt welder to operate on site without having to hire a generator.

Standard Ritmo Butt Welder machine features include:

• Working range: 225 – 630 mm Diameter PE Pipe
• 4 steering wheels drive, detachable control panel
• Self-contained with on-board generator – Diesel-engine 2200 cc 22,7 Kw
• SmartLock Inserts and Sliding 3rd CLAMP for welding HDPE fittings

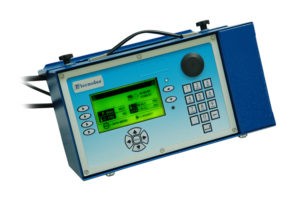

• DATA-LOGGING with GPS; memory 4000 report
• Hydraulic Lifts, and Hydraulic-controlled Clamps and Milling cutter
• Can be equipped with a range of welding inserts, available on request.
• ‘Easy Life’ automatic welding system which is Wi-Fi ready and works with the App ‘Set & Go – Pro’

Power Requirements: Inbuilt power generation. NO Generator required

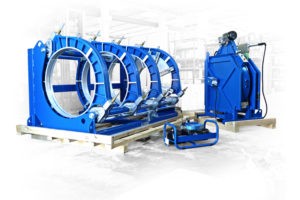

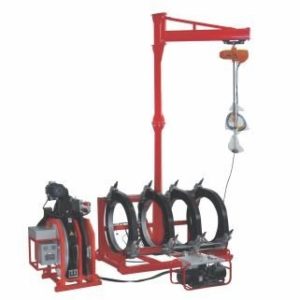

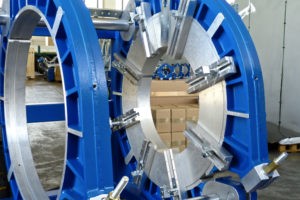

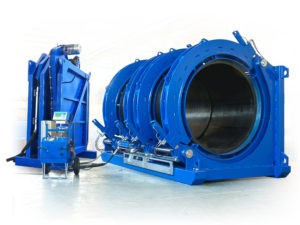

1000mm BUTT FUSION MACHINE (Electric Hydraulic Butt Welder)

The 630 Butt Fusion Machine hire is perfect for butt-welding polyethylene pipes with an outside diameter between 630mm and 1000mm diameter in Electric Hydraulic mode. For on-site butt welding, contact our team to hire a suitable generator. The Butt Welding Machine includes a jib crane to assist with the milling cutter and heater plate, which are quite heavy due to the large capacity of the butt welder.

Complete with butt welding machine body, jib crane, extractable heating plate, extractable milling cutter, electro-hydraulic gearcase, heating plate and milling cutter support, tool kit, Stub End Device (Spider)

** set of inserts OD 630, 710, 800, 900mm, main clamp OD 1000mm

Power Requirements: 24Kw – Recommended genset for field operation – 30kva 415v, three phase

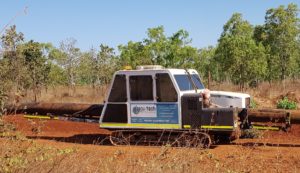

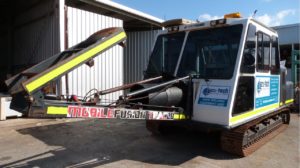

FAST FUSION Trac20 Tracked Fusion Welder MFT20 – (Self-Contained Butt Welder up to 500mm)

Acu-Tech’s Fast Fusion Trac20® Butt Welder Rental is perfect for butt fusion welding long HDPE pipelines in demanding environments. The ‘MobileFusion’ Butt Welder is an all-weather fusion system that incorporates weld bead cooling technology. By bringing fusion welding operations into the safety of an air-conditioned cab, butt welding crews are safer and more productive on site – teams can become up to 70% more productive than using conventional fusion welding machines.

The FastFusion Butt Welder has a self-contained C4.4 caterpillar diesel engine, which together with the 9KW onboard generator, powers the track mechanism and the butt welding equipment.

One of the key benefits of MobileFusion Trac20 (MFT) butt welding machine is FastLoad® – a self-loading front boom that allows single operator to load the pipe from within the cabin area. That means no extra heavy equipment on the site to load or hold pipe in place for pipe welding.

Standard MFT20 butt welding machine features:

• Working range of 225mm to 630 mm HDPE Pipe.
• Can be equipped with a range of welding inserts, available on request.
• Caterpillar C4.4 Diesel-engine – 138 HP @ 2,200 RPM.
• Has a 200L fuel tank, Engine consumes approx. 11L/hr.
• Self-contained with on-board 9 KW generator – 9 KW 120/240V 60Hz.
• Electrical circuit equipped switches, breakers and a main disconnect.
• Comes with a McElroy Data-Logger to assist with HDPE Welding.
• Weighs approx. 8.5 Tonnes, and travels 10.5 km/h max
• 6m wide over tracks & transport, 12m long, 3m high.
• Fast Fusion fully automatic weld bead temperature control.
• Fully air-conditioned cabin, which contains a fridge for crew convenience.
• Visibility to all sides of the machine, with 360⁰ view from the cab windows.
• Has windscreen wipers, and a fire extinguisher for emergencies.
• Orange flashing lights, interior and exterior lights, including a movable spotlight.
• Enclosed cab removes the delays caused by wind, dust, cold, hot, rain, and snow.

Power Requirements: Inbuilt power generation. NO Generator required.
