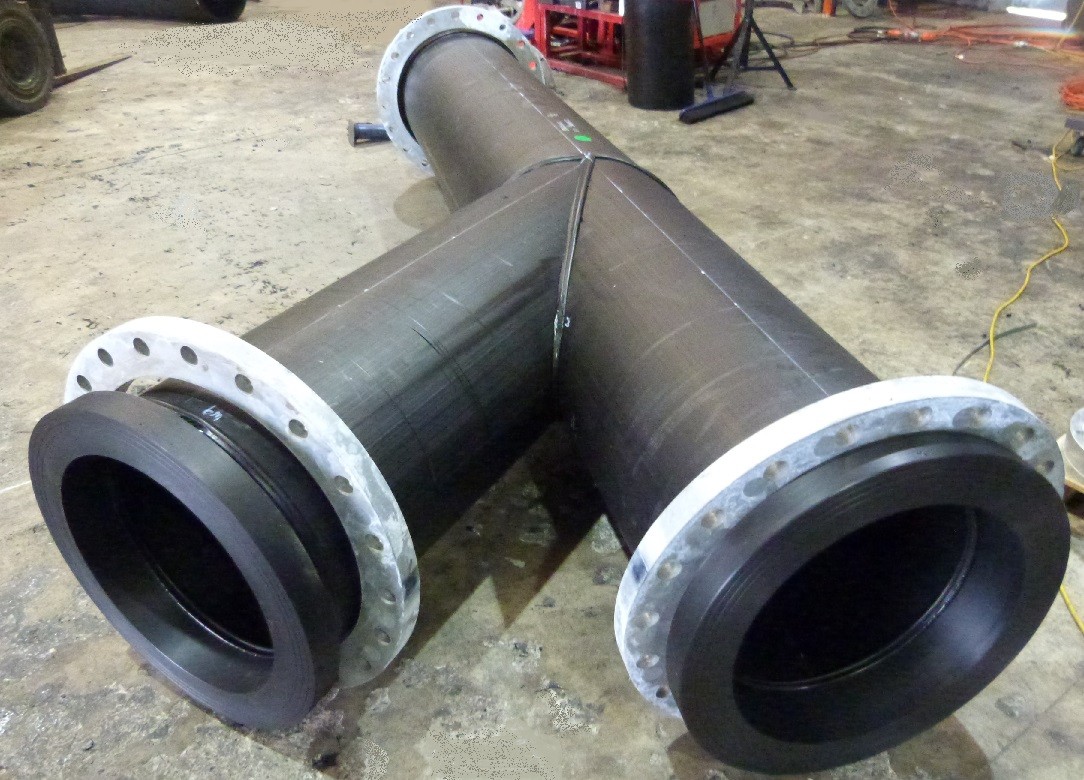

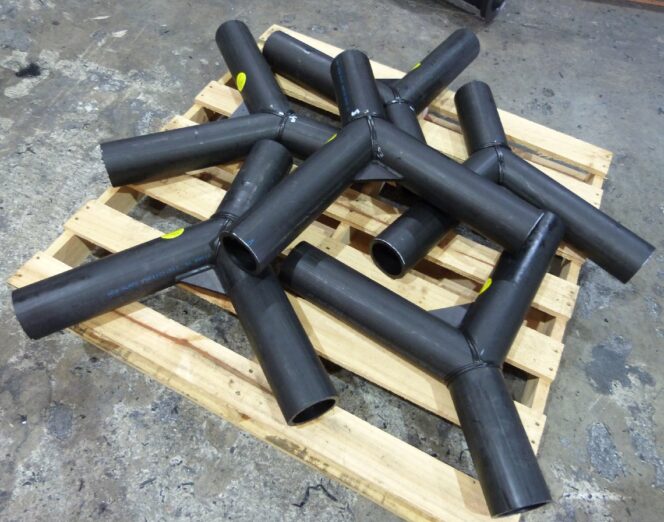

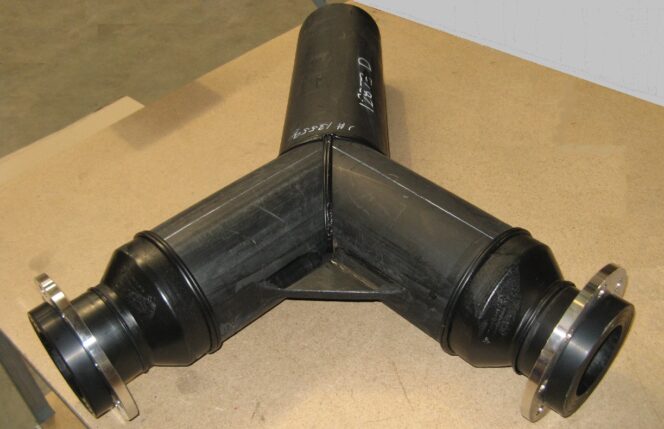

Acu-Tech Piping Systems fabricates poly Y junctions for branching off a HDPE pipeline. Y junctions are also known as true Y pieces, fabricated junction or forks. Y junctions are fabricated from two pieces of Acu-Tech’s polyethylene pipe, and can be made in any colour and size up to 630 mm. Sometimes called a poly wye, a Y-shaped fitting has three openings and is used to create branch lines out of polyethylene pipe.
The length of HDPE Y Junctions are specified in the PIPA document ‘PE Fabricated Fittings For Pressure Applications: De-rating Requirements’, which states in section 4.3 segmented tees and y junctions: “Fabricated equal and reduced tees and y junctions, manufactured by butt fusion jointing PE pipe segments, shall be produced in accordance to ISO 4427-3 Section B.5. The fitting length shall allow the following (in any combination): the use of clamps required in the case of butt fusion; assembly with an electrofusion fitting; assembly with a socket fusion fitting; the use of a mechanical scraper.”
With a fully equipped plastic fabrication workshop and experienced and qualified operators, Acu-Tech Piping Systems fabricates spools and components from pipe and sheet to client specifications. Our extensive HDPE fabrication capabilities includes sweep bends, shouldered ends, 45 junctions, manifolds, large bore mitred bends and tees, surge tanks, launders, fabricated chutes, true y pieces, equal and reducing tees, and segmented bends ranging in size from 25 mm – 800 mm. For any other requirements and for fabricated items that are less common and not mentioned our catalogue, feel free to contact us and we will gladly assist.
See photos and more information about our custom poly fitting fabrication at www.acu-tech.com.au/custom-fabrication/
THE ACU-TECH DIFFERENCE
Short Lead Times
We understand how most of our clients work with tight deadlines, and we endeavour to complete our requirements on time and deliver what we promise. For very urgent jobs, we have the capability to put on extra shifts to help our clients meet the target date. We understand that a consistent and reliable supply of polyethylene pipe fittings facilitates our customers being able to install HDPE pipe on the job site without delays.
HDPE components are only limited by the imagination. Having decades of experience in providing bespoke, pre-fabricated solutions, fabrication complexity is a challenge we enjoy. Discuss your required custom made PE pipe fittings with our friendly Perth team.
Quality Assurance and Documentation
Our services go beyond providing bespoke PE fabricated fittings. We ensure that all pertinent QA/QC documentation requirements are fully accomplished and you can rely on us from meeting the requirements of ISO 9001 to having the components tested.
If you need advice or guidance, we’re here to help.
Acu-Tech Piping Systems’ sales team have extensive experience in supplying fabrication services. We encourage you to tap into this wealth of knowledge for advice and guidance. Our sales office is ready to take your call on 08 9238 8000 and will ensure that your enquiry is dealt with promptly. Alternatively, to send a message please click here.
