Poly electrofusion fittings engineered to give you confidence

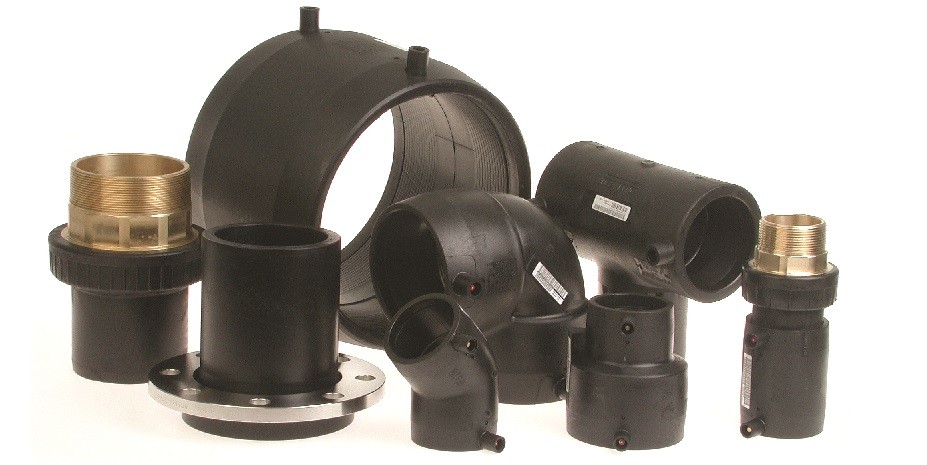

The use of PE electrofusion fittings with polyethylene pipes allows the creation of fully-sealed PE pipe networks. With quality electrofusion fittings, plumbers and contractors across various industries are able to produce fusion-welded joints that offer reliability, flexibility and high performance. Product Description Acu-Tech’s electrofusion pipe fitting system offers high performance and ease of installation. Using the electrofusion technique, polyethylene pipes are conveniently joined, minimising welding and cooling time. In each EF poly pipe fitting, the wires’ energising coils of the electro fitting are precisely positioned ensuring uniform melting for a strong joint. Our extensive range of PE electrofusion pipe fittings include:
We also carry tools, accessories and equipment for electrofusion welding. For more information on our PE pipe fitting products, as well as a summary of our electrofusion procedure guidelines, download our PE Pressure Pipe Fittings catalogue.
Training for Plumbers – Electrofusion Jointing for HDPE pressure and drainage pipes
As with welding carried out on any material used for engineering purposes, fusion welding of polyethylene (HDPE) for plumbing and drainage pipe systems is a skilled operation which must be carried out by suitably trained and certified tradespersons.
Training and accreditation is mandatory for plumbers under the Plumbing Code of Australia (PCA) as both AS/NZS 3500.1 Plumbing and drainage – Water services and AS/NZS 3500.2 Plumbing and drainage – Sanitary plumbing and drainage contain references to AS/NZS 2033 Installation of polyethylene pipe systems. AS/NZS 2033 Clause 4.2 Fusion Jointing specifies “Only trained and certified operators shall carry out fusion jointing”.
Acu-Tech facilitates Nationally Accredited training courses covering fusion welding procedures through Polyweld Tech Academy which is a Registered Training Organisation (RTO).
Suggested List of Equipment for Electrofusion Welding:
The following is a list of the minimum equipment that should be available at each electrofusion welding site.- Diameter tape (i.e. Pi tape/pie tape) – to measure average diameter in the weld zone.
- Metal Ruler – to measure insertion depth.
- Caliper or metal rule to measure Pipe ovality.
- Pipe cutting tools – appropriate pipe cutting device to ensure pipe squareness.
- Rotational Peeling tool – Capable of removing a continuous minimum of 0.2 mm of material per pass.
- De-burring tool – tool to remove sharp edge of pipe.
- Re-rounding clamps – clamps must ensure area in weld zone remains within roundness specification during the weld.
- Alcohol cleaning wipes – EF fitting manufacturer approved cleaning wipes for final surface cleaning.
- White ink permanent marker for witness marks & weld details.
- Alignment clamps – clamps must be able to align the pipe and fitting to ensure there are no bending stresses on the assembly during the welding process.
- Power supply (generator calibrated and rated as per fitting supplier specification).
- Electrofusion control unit in accordance with ISO 12176-2.
- Environment protection enclosures (e.g. tent or shade apparatus for protection against direct sunlight exposure and adverse weather conditions).
Electrofusion Coupler Fittings
Electrofusion Reducer Fittings
Electrofusion 90 Elbow Fittings

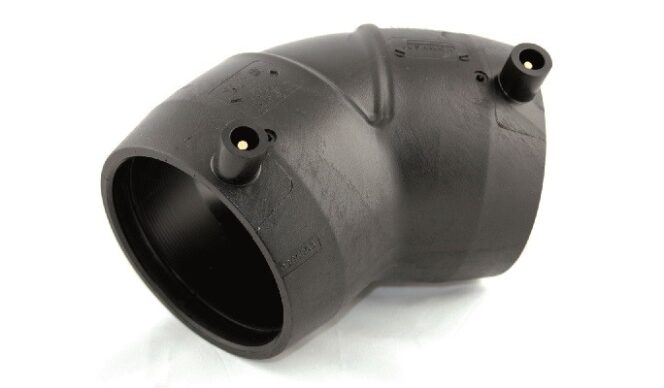

Electrofusion 45 Elbow Fittings

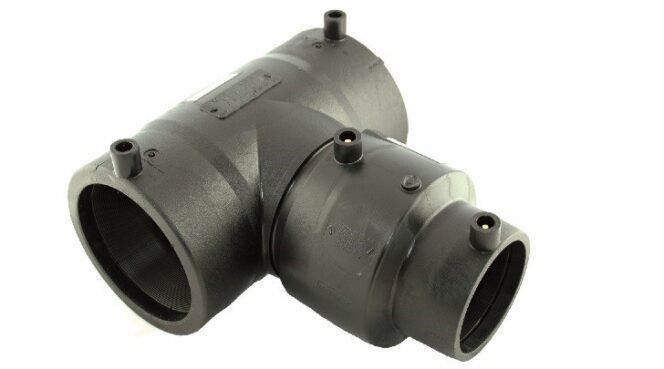

Electrofusion Reducing Tee Fittings

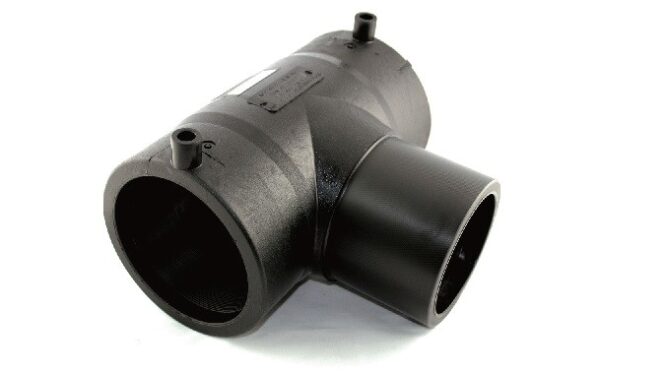

Electrofusion Equal Tee Fittings
Electrofusion Tapping Saddle Fittings
Electrofusion Branch Saddle Fittings
Electrofusion End Cap Fittings

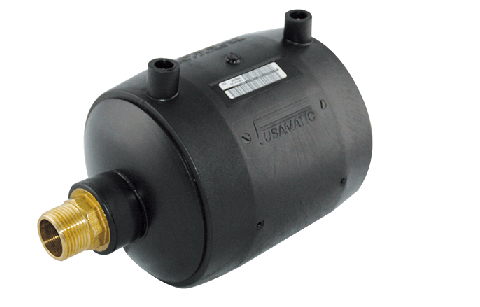

Electrofusion Test End Cap Fittings
Electrofusion Brass Transition Fittings
Electrofusion PE Transition Fittings
