APPROXIMATE PIPE CAPACITY OF TRUCKS

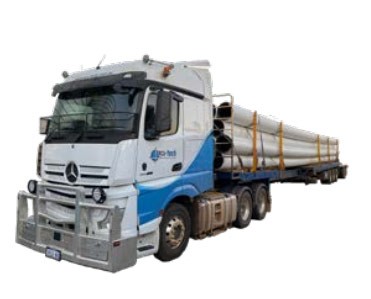

HDPE pipe truck loading chart is based on the pipe’s outside diameter.Straight Lengths
Pipe OD (mm)
110mm
125mm
140mm
160mm
180mm
200mm
225mm
250mm
280mm
315mm
355mm
400mm
450mm
500mm
560mm
630mm
710mm
800mm
No. of Pipes 12m & SDR11
462
596
574
252
170
165
114
108
80
65
48
55
27
24
18
15
12
8
No. of Pipes 20m * SDR11
525
250
205
155
125
100
78
64
51
40
52
25
19
16
15
10
8
6

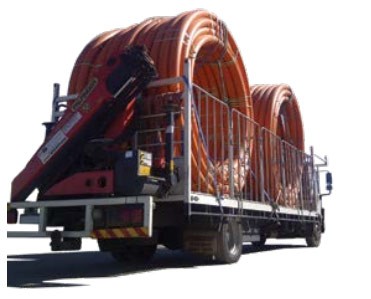

Coils
Pipe OD (mm)
63mm
75mm
90mm
110mm (100m)
125mm
140mm
160mm
No. of Coils
45
40
25
20
16
12
8-12
Our HDPE Pipe truck loading chart is based on semi-trailer capacity. Quantities may not always be achievable. This information is provided as guide only. Contact our team for advice on your project logistics.
Our chart can also be found within our product catalogue under “Truck Pipe and Coil Capacity”. Click here to view our product catalogue.
