Offering many advantages, electrofusion fittings
are a choice method for creating a secure network of pipe systems. With electrofusion fittings, pipes and adaptors can be joined without having to move the pipes during welding. The finished work gives secure, reliable and long-lasting joins, in a way that is efficient and easy to do.
To reap the benefits of electrofusion, however, proper installation practices must be observed. This is easier said than done because welding operators often have to work in confined spaces or busy areas and in harsh weather conditions.
To help you ensure a smooth and successful electrofusion welding job, here are a few tips to remember:
Ensuring Pipe Quality
Pipes are sometimes subjected to handling damage when on site, or during installation. A degree of cuts or scrapes are allowed, but make sure that the damage is not more than 10% of the wall thickness for water pipes and not more than 5% for gas pipes. Before scraping, wipe down the pipe’s joining area with a clean cloth or towel that does not leave fibres.
Improper scraping is one of the most common causes of electrofusion failure. Scraping is primarily to reveal a surface that has not been exposed to UV rays, to allow for proper bonding. If the surface is not scraped, the surface will heat up, but may not bond with the electrofusion fitting. To ensure that you don’t scrape off too much of the pipe and that you are scraping the pipe evenly, a rotary scraper is ideal.

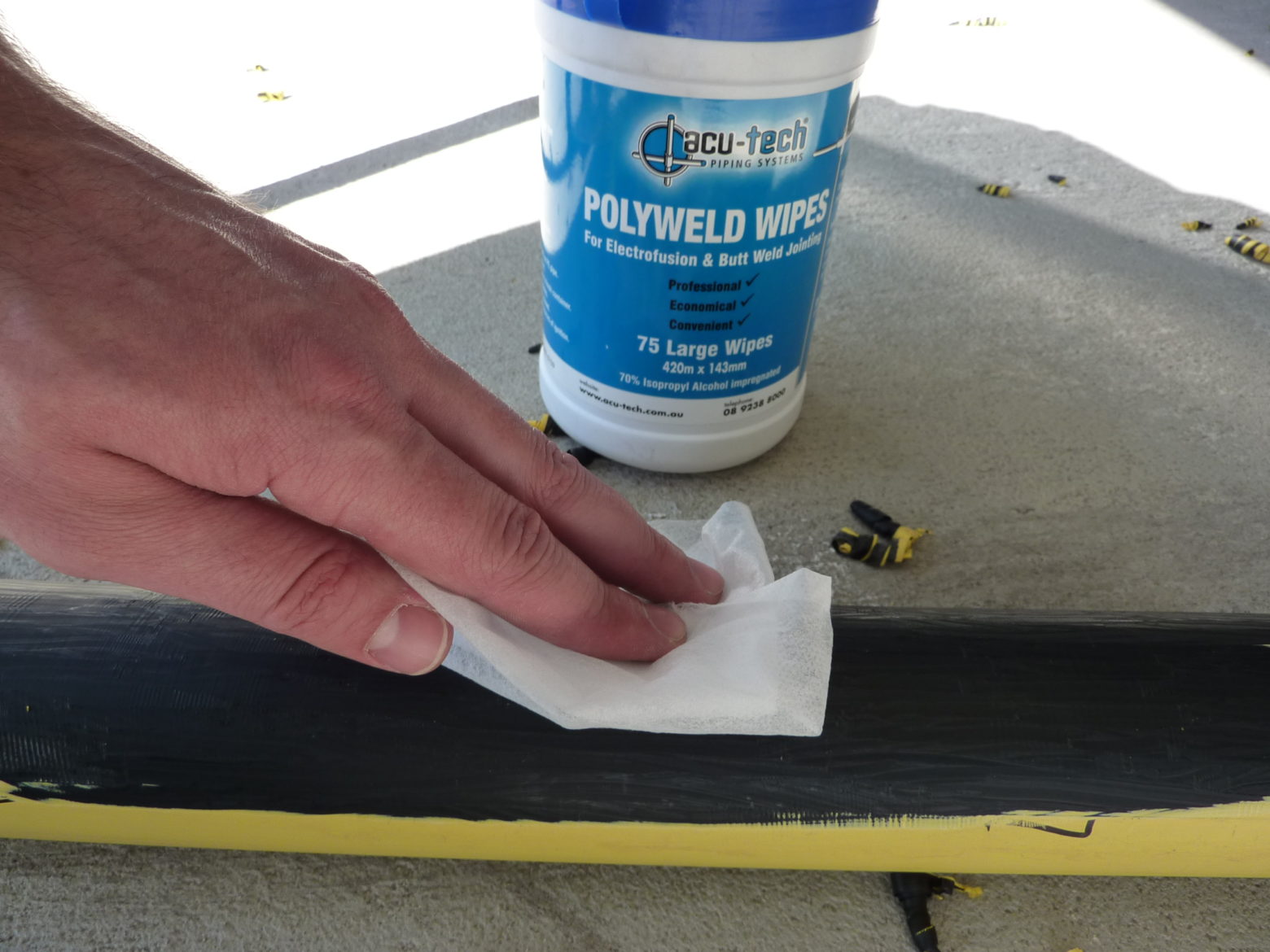

Before inserting the pipe into the electrofusion fitting, wipe down the surface with Poly Welding Wipes
— an isopropanol impregnated wipe, to remove any residue. Ensure that the surface is properly dry and that it does not come into contact with further contaminants. Refrain from touching the scraped and cleaned surface and check for small substances such as lint from the cloth, dust or oil from the skin as these affect the quality of the weld.

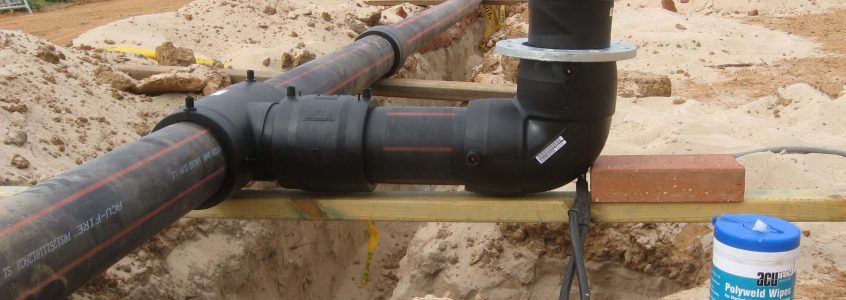

Ensuring Proper Alignment
Ensuring proper and secure alignment is one of the most important aspects of electrofusion welding. Throughout the heating and cooling phases, the pipes and fittings must be aligned with each other. Make sure you’re using right-sized clamps
and that they are securely clamped on to keep everything tight and straight.
Strictly Follow the Machine’s Instructions
Electrofusion welding machines provide welding instructions at the right time. Follow these instructions precisely to allow adequate time for heating and cooling. Remember to stand at a proper distance, at least a meter away, in case the machine malfunctions and polyethylene melts.
Proper electrofusion welding may be challenging with its demand for skill, consistency and precision but with the possible consequences and costs of failure — it must be done correctly.
