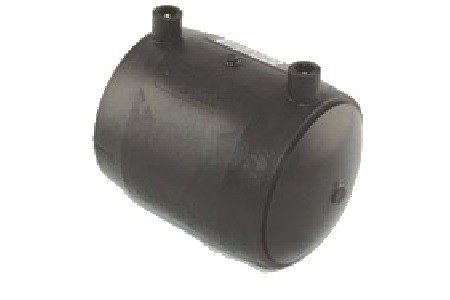

An electrofusion end cap is used to cap off the end of a HDPE pipe. With a size range from 20 mm to 315 mm, electrofusion end cap fittings come in SDR 11 (which also suits SDR 13.6 & SDR 17). Electrofusion end cap fittings are made from PE100 material with a precisely moulded energising coil of wire, ensuring uniform melting for a strong electrofusion joint and the minimisation of welding and cooling times. SDR 11, SDR 13.6 and SDR17 electrofusion end caps are rated to PN16 water and 1000 kPa gas.
End cap electrofusion fittings are suitable for use for HDPE pipe, and welded with an electrofusion pressure welder. Electrofusion end cap PE fittings may also be known as an electrofusion end caps or EF pipe end caps.
Electrofusion End Cap sizes available:
Training for Plumbers – Electrofusion Jointing for HDPE pressure and drainage pipes
- 20 mm electrofusion end cap (2274.0020).
- 25 mm electrofusion end cap (2274.0025).
- 32 mm electrofusion end cap (2274.0032).
- 40 mm electrofusion end cap (2274.0040).
- 50 mm electrofusion end cap (2274.0050).
- 63 mm electrofusion end cap (2274.0063).
- 75 mm electrofusion end cap (2274.0075).
- 90 mm electrofusion end cap (2274.0090).
- 110 mm electrofusion end cap (2274.0110).
- 125 mm electrofusion end cap (2274.0125).
- 140 mm electrofusion end cap (2274.0140).
- 160 mm electrofusion end cap (2274.0160).
- 180 mm electrofusion end cap (2274.0180).
- 200 mm electrofusion end cap (2274.0200).
- 225 mm electrofusion end cap (2274.0225).
- 250 mm electrofusion end cap (2274.0250).
- 280 mm electrofusion end cap (2274.0280).
- 315 mm electrofusion end cap (2274.0315).
As with welding carried out on any material used for engineering purposes, fusion welding of polyethylene (HDPE) for plumbing and drainage pipe systems is a skilled operation which must be carried out by suitably trained and certified tradespersons.
Training and accreditation is mandatory for plumbers under the Plumbing Code of Australia (PCA) as both AS/NZS 3500.1 Plumbing and drainage – Water services
and AS/NZS 3500.2 Plumbing and drainage – Sanitary plumbing and drainage
contain references to AS/NZS 2033 Installation of polyethylene pipe systems
. AS/NZS 2033 Clause 4.2 Fusion Jointing
specifies “Only trained and certified operators shall carry out fusion jointing”.
Acu-Tech facilitates Nationally Accredited training courses covering fusion welding procedures through Polyweld Tech Academy which is a Registered Training Organisation (RTO).
