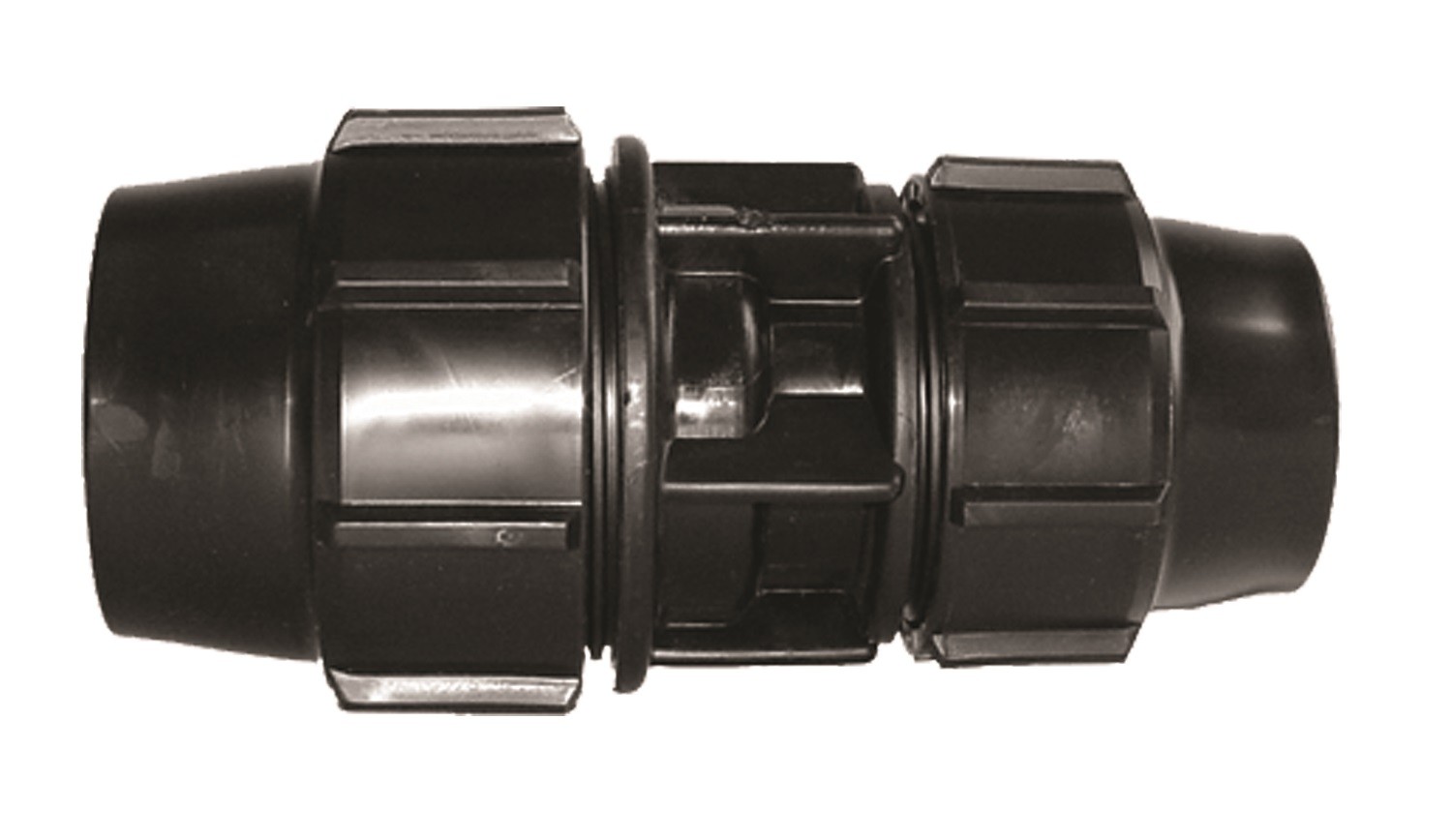

Compression Reducer Fitting

A compression reducer fitting is used to join two lengths of different-size metric HDPE pipe. With a size range from 20/16 mm to 110/90 mm, compression reducer fittings match common pipe sizes, and are usually SDR 11. Compression reducers are suitable for water and other similar fluids, with pressures up to 16 bar, however this varies with the ambient temperature and temperature of the pipe contents. Reducer compression fittings are made from PE100 material with precisely moulded parts, and a rubber sealing ring for larger sizes. Compression reducers are suitable for outdoor use, being resistant to etching by numerous chemical substances, and to UV rays. Compatible with PELD, PEHD, PE40, PE80 and PE100 pipes, compression reducer fittings may also be known as compression reducing joiners, compression reducing couplings, compression reducing couplers or compression reducing pipe joiners. Sizes up to 200mm are available in some compression fittings, so contact us if you have a specific size that isn’t listed below! Compression reducer sizes available:

• 20 mm to 16 mm compression reducer (7034.2016).
• 25 mm to 20 mm compression reducer (7034.2520).
• 32 mm to 20 mm compression reducer (7034.3220).
• 32 mm to 25 mm compression reducer (7034.3225).
• 40 mm to 25 mm compression reducer (7034.4025).
• 40 mm to 32 mm compression reducer (7034.4032).
• 50 mm to 25 mm compression reducer (7034.5025).
• 50 mm to 32 mm compression reducer (7034.5032).
• 50 mm to 40 mm compression reducer (7034.5040).
• 63 mm to 25 mm compression reducer (7034.6325).
• 63 mm to 32 mm compression reducer (7034.6332).
• 63 mm to 40 mm compression reducer (7034.6340).
• 63 mm to 50 mm compression reducer (7034.6350).
• 75 mm to 50 mm compression reducer (7034.7550).
• 75 mm to 63 mm compression reducer (7034.7563).
• 90 mm to 63 mm compression reducer (7034.9063).
• 90 mm to 75 mm compression reducer (7034.9075).
• 110 mm to 63 mm compression reducer (7034.1163).
• 110 mm to 90 mm compression reducer (7034.1190).

To view Acu-Tech’s Compression Fittings Catalogue, click here.
