Product Description

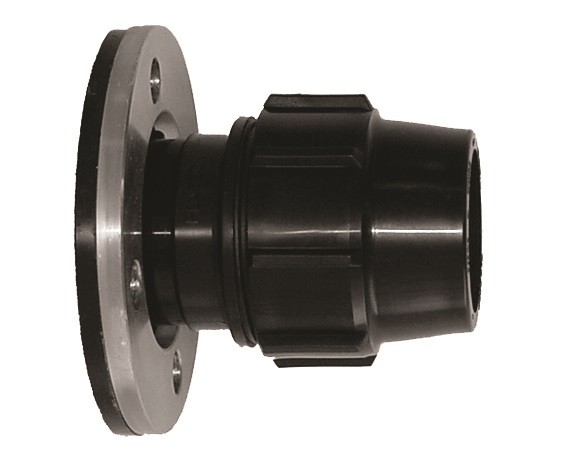

A compression flange adaptor fitting is used to join a length of metric HDPE pipe with a flanged end. With a size range from 50 mm to 160 mm, compression flange adaptor fittings match common pipe sizes and common flange sizes, and are usually SDR 11. Compression flange adaptors are suitable for water and other similar fluids, with pressures up to 16 bar, however this varies with the ambient temperature and temperature of the pipe contents. Flange adaptor compression fittings are made from PE100 material with precisely moulded parts, and a rubber sealing ring for larger sizes. Compression flange adaptors are suitable for outdoor use, being resistant to etching by numerous chemical substances, and to UV rays. Compatible with PELD, PEHD, PE40, PE80 and PE100 pipes, compression flange adaptor fittings may also be known as compression flange adaptor fittings, compression flange adaptor fittings or poly pipe flange joiners. Sizes up to 200mm are available in some compression fittings, so contact us if you have a specific size that isn’t listed below! Compression flange adaptor sizes available:
  • 50 mm compression flange adaptor – 1.½” ISO Flange (7414.5040).
  • 50 mm compression flange adaptor – 2” ISO Flange (7414.5050).
  • 63 mm compression flange adaptor – 2” ISO Flange (7414.6350).
  • 63 mm compression flange adaptor – 2.½” ISO Flange (7414.6365).
  • 75 mm compression flange adaptor – 2.½” ISO Flange (7414.7580).
  • 90 mm compression flange adaptor – 3” ISO Flange (7414.9080).
  • 90 mm compression flange adaptor – 4” ISO Flange (7414.9010).
  • 110 mm compression flange adaptor – 4” ISO Flange (7414.1110).
  • 125 mm compression flange adaptor – 5” ISO Flange (7414.1212).
  • 160 mm compression flange adaptor – 5” ISO Flange (7414.1612).
  • 160 mm compression flange adaptor – 6” ISO Flange (7414.1615).
To view Acu-Tech’s Compression Fittings Catalogue, click here.

Need more info?

Acu-Tech’s supply of premium-quality poly compression fittings is only paralleled by our brand of customer service. Contact us today for your queries and our sales team will gladly help you with compression fittings. Offering custom fabrication services and working with Europe’s leading manufacturers, we also help businesses who are in need of something more specific.
