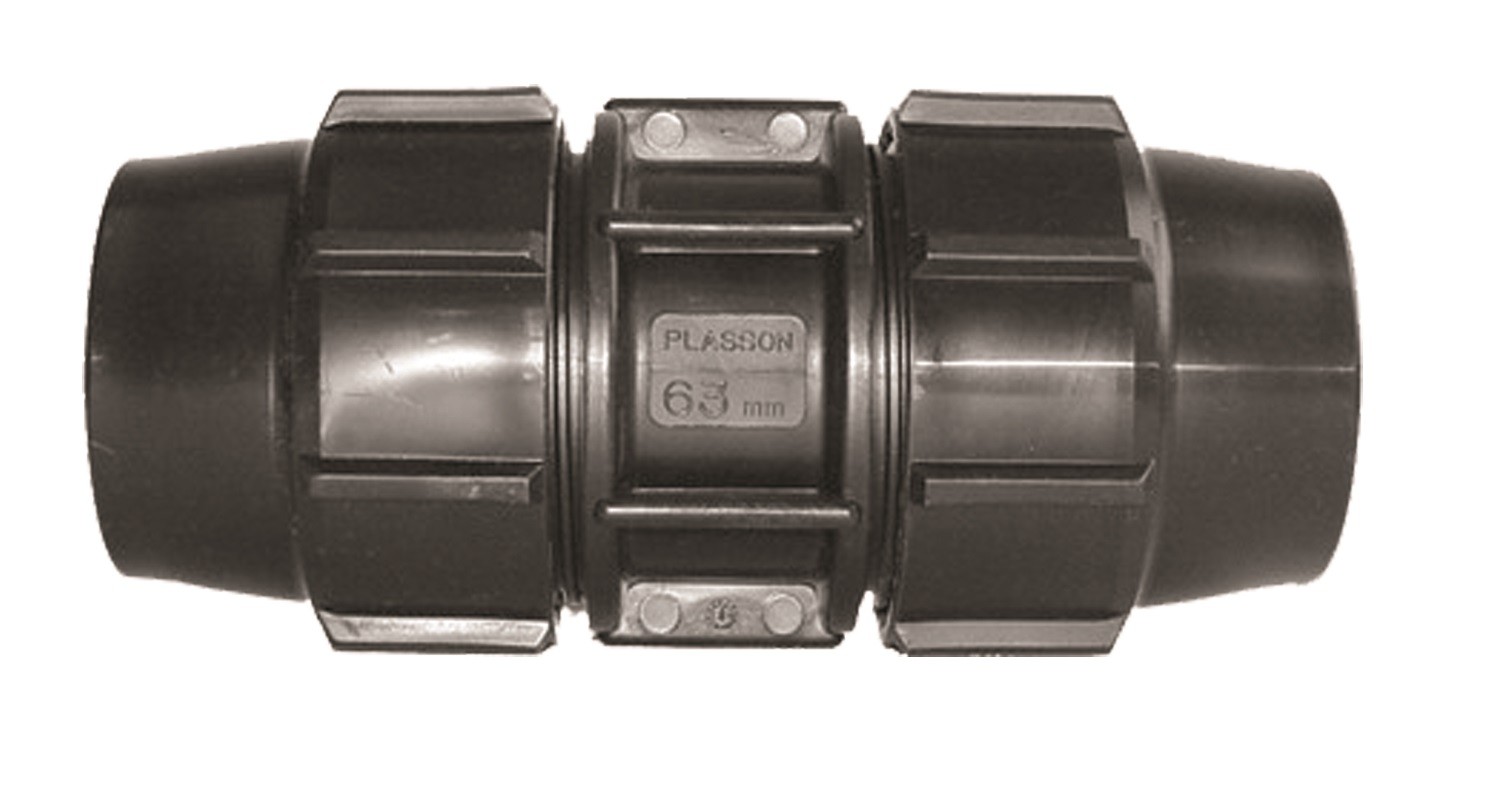

Compression Coupler Fitting

A compression coupler fitting is used to join two lengths of metric HDPE pipe in a straight line. With a size range from 20 mm to 160 mm, compression coupler fittings match common pipe sizes, and are usually SDR 11. Compression couplers are suitable for water and other similar fluids, with pressures up to 16 bar, however this varies with the ambient temperature and temperature of the pipe contents. coupler compression fittings are made from PE100 material with precisely moulded parts, and a rubber sealing ring for larger sizes. Compression couplers are suitable for outdoor use, being resistant to etching by numerous chemical substances, and to UV rays. Compatible with PELD, PEHD, PE40, PE80 and PE100 pipes, compression coupling joiners may also be known as compression joiners, compression socket fittings or compression pipe joiners. Sizes up to 200mm are available in some compression fittings, so contact us if you have a specific size that isn’t listed below! Compression coupling sizes available:

• 20 mm compression coupler (7014.0020).
• 25 mm compression coupler (7014.0025).
• 32 mm compression coupler (7014.0032).
• 40 mm compression coupler (7014.0040).
• 50 mm compression coupler (7014.0050).
• 63 mm compression coupler (7014.0063).
• 75 mm compression coupler (7014.0075).
• 90 mm compression coupler (7014.0090).
• 110 mm compression coupler (7014.0110).
• 125 mm compression coupler (7014.0125).
• 160 mm compression coupler (7014.0160).

To view Acu-Tech’s Compression Fittings Catalogue, click here.
