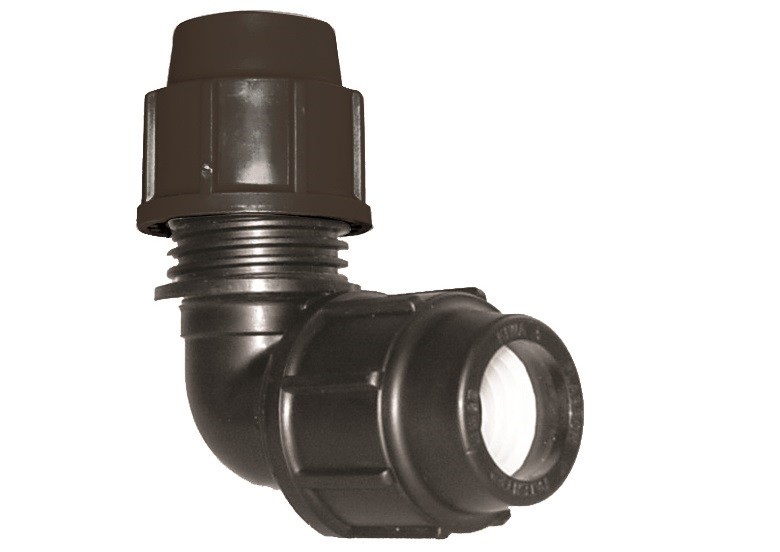

90° Compression Elbow

A compression 90° elbow fitting is used to join two lengths of metric HDPE pipe in an L shape. With a size range from 20 mm to 160 mm, compression 90° elbow fittings match common pipe sizes, and are usually SDR 11. Compression 90° elbows are suitable for water and other similar fluids, with pressures up to 16 bar, however this varies with the ambient temperature and temperature of the pipe contents. 90° elbow compression fittings are made from PE100 material with precisely moulded parts, and a rubber sealing ring for larger sizes. Compression 90° elbows are suitable for outdoor use, being resistant to etching by numerous chemical substances, and to UV rays. Compatible with PELD, PEHD, PE40, PE80 and PE100 pipes, compression 90° elbow fittings may also be known as compression 90° elbows, compression 90° bend fittings or poly pipe 90° bends. Sizes up to 200 mm are available in some compression fittings, so contact us if you have a specific size that isn’t listed below! Compression 90° elbow sizes available:

• 20 mm 90° compression elbow (7054.0020).
• 25 mm 90° compression elbow (7054.0025).
• 32 mm 90° compression elbow (7054.0032).
• 40 mm 90° compression elbow (7054.0040).
• 50 mm 90° compression elbow (7054.0050).
• 63 mm 90° compression elbow (7054.0063).
• 75 mm 90° compression elbow (7054.0075).
• 90 mm 90° compression elbow (7054.0090).
• 110 mm 90° compression elbow (7054.0110).
• 160 mm 90° compression elbow (7054.0160).

To view Acu-Tech’s Compression Fittings Catalogue, click here.
