Product Description

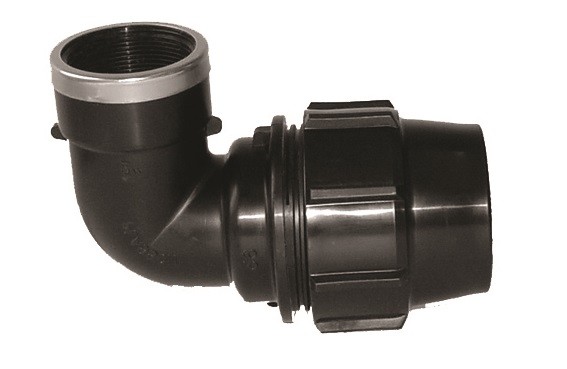

A compression 90° elbow fitting is used to join two lengths of metric HDPE pipe in an L shape, but with a threaded female fitting at one end. With a size range from 20 mm to 75 mm, compression 90° elbow with female end fittings match common pipe sizes, and are usually SDR 11. Compression 90° elbow with female ends are suitable for water and other similar fluids, with pressures up to 16 bar, however this varies with the ambient temperature and temperature of the pipe contents. 90° elbow with female end compression fittings are made from PE100 material with precisely moulded parts, and a rubber sealing ring for larger sizes. The threaded end is reinforced with a stainless steel ring.

Compression 90° elbow with female ends are suitable for outdoor use, being resistant to etching by numerous chemical substances, and to UV rays. Compatible with PELD, PEHD, PE40, PE80 and PE100 pipes, compression 90° elbow with female end fittings may also be known as compression 90° elbow with female ends, compression socket fittings or poly pipe bends. Sizes up to 200 mm are available in some compression fittings, so contact us if you have a specific size that isn’t listed below!

Compression 90° elbow with female end sizes available:

  • 20 mm to ½” 90° compression elbow with female end (7064.2015).
  • 20 mm to ¾” 90° compression elbow with female end (7064.2020).
  • 25 mm to ½” 90° compression elbow with female end (7064.2515).
  • 25 mm to ¾” 90° compression elbow with female end (7064.2520).
  • 25 mm to 1” 90° compression elbow with female end (7064.2525).
  • 32 mm to ¾” 90° compression elbow with female end (7064.3220).
  • 32 mm to 1” 90° compression elbow with female end (7064.3225).
  • 32 mm to 1.¼” 90° compression elbow with female end (7064.3232).
  • 40 mm to 1” 90° compression elbow with female end (7064.4025).
  • 40 mm to 1.¼” 90° compression elbow with female end (7064.4032).
  • 40 mm to 1.½” 90° compression elbow with female end (7064.4040).
  • 40 mm to 2” 90° compression elbow with female end (7064.4050).
  • 50 mm to 1” 90° compression elbow with female end (7064.5025).
  • 50 mm to 1.¼” 90° compression elbow with female end (7064.5032).
  • 50 mm to 1.½” 90° compression elbow with female end (7064.5040).
  • 50 mm to 2” 90° compression elbow with female end (7064.5050).
  • 63 mm to 1.¼” 90° compression elbow with female end (7064.6332).
  • 63 mm to 1.½” 90° compression elbow with female end (7064.6340).
  • 63 mm to 2” 90° compression elbow with female end (7064.6350).
  • 75 mm to 2.½” 90° compression elbow with female end (7064.7563).
  • 75 mm to 3” 90° compression elbow with female end (7064.7580).

To view Acu-Tech’s Compression Fittings Catalogue, click here.
