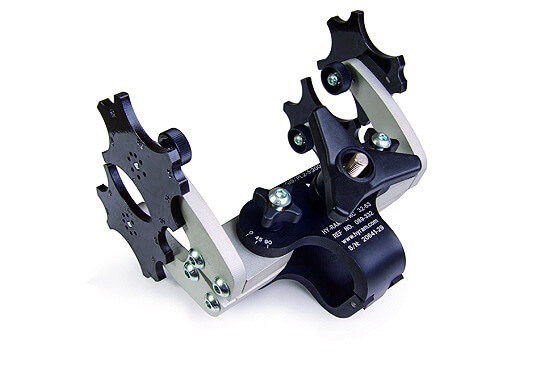

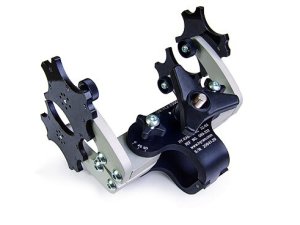

Uni-Clamp - Restraining & Alignment Clamps

The Uniclamp is a compact yet robust clamp designed for multiple applications, including straight, reducing, and elbow electrofusion fittings. Its prevents any unwanted movement during the welding process, thereby reducing the risk of weld failure.

Product Code Description
231-0010 Uni-Clamp 16-32mm
231-0020 Uni-Clamp 20-40mm
231-0030 Uni-Clamp 16-63mm

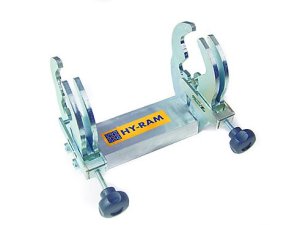

EFAC 63 Alignment Clamp

This alignment clamp ensures quick and easy clamping of any size pipe between 20-63mm with no adjustment or loose pieces. The standard version suits straight and reducing fittings, whilst the 45/90° version also facilitates clamping of elbows and tees.

Product Code Description
231-1010 EFAC 63mm Alignment Clamp
231-1020 EFAC 63mm 45/90° Alignment Clamp

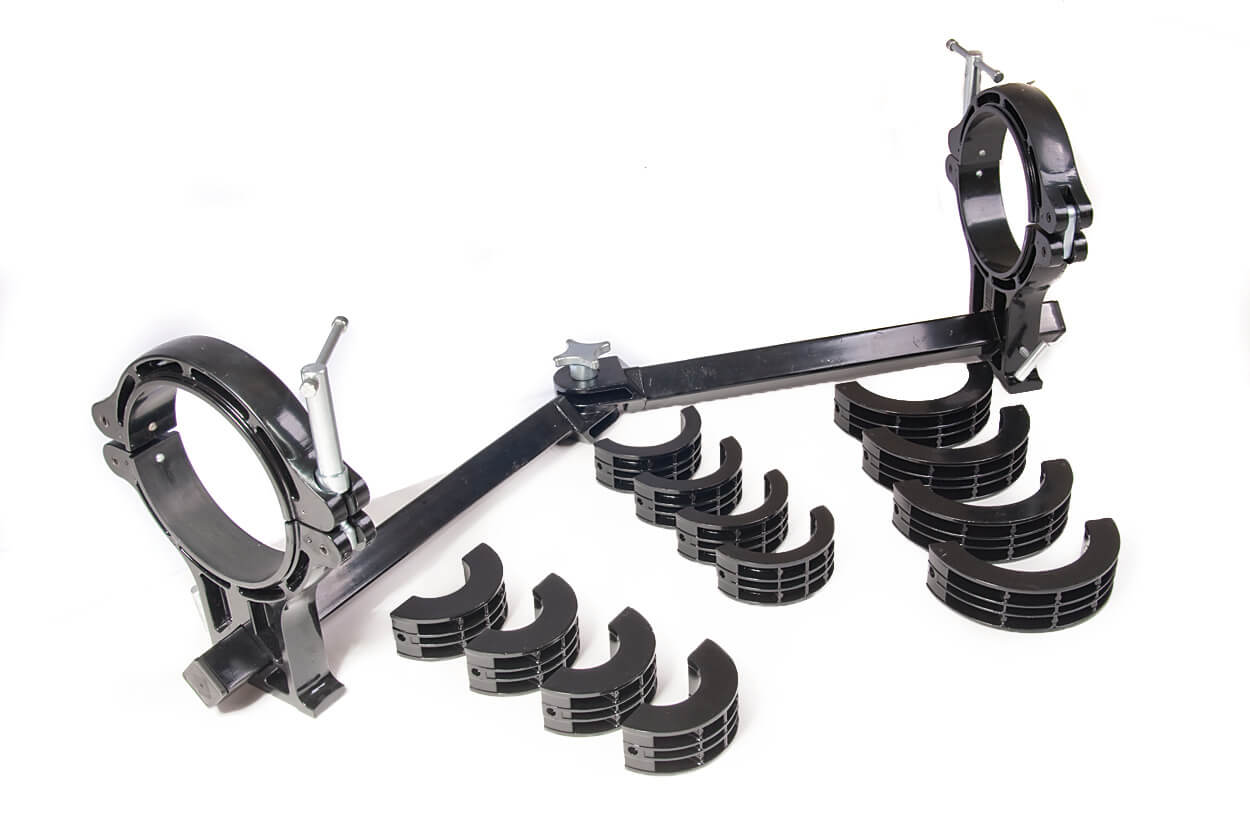

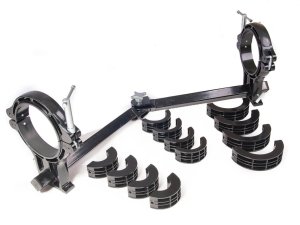

ERFAC 180 Delux Restraining & Alignment Clamp Kit

The Delux Kit caters for straight, reducing and elbow electrofusion fittings. It comes in a tough carry bag and with liners to suit pipe sizes of 63, 90, 125 and 180mm. This clamp removes the need for a separate re-rounding tool as the clamp design will re-round the pipe. The Tee Adapter can be seamlessly connected to the delux kit. A dedicated carry bag for the Tee Adapter and extral liners are also available for purchase.
Product CodeDescription
231-0120EFRAC 180 Delux Kit Complete with Knuckled Bar, Standard Liners and Bag.
231-0130EFRAC 180 Tee Adaptor Kit
231-0131Carry Bag for EFRAC 180 Tee Adaptor
231-0151EFRAC Liner – 63mm
231-0152EFRAC Liner – 75mm
231-0153EFRAC Liner – 90mm
231-0154EFRAC Liner – 110mm
231-0155EFRAC Liner – 125mm
231-0156EFRAC Liner – 140mm
231-0157EFRAC LIner – 160mm

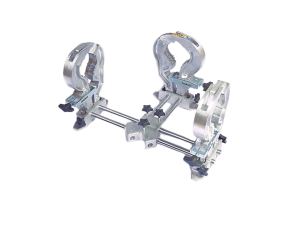

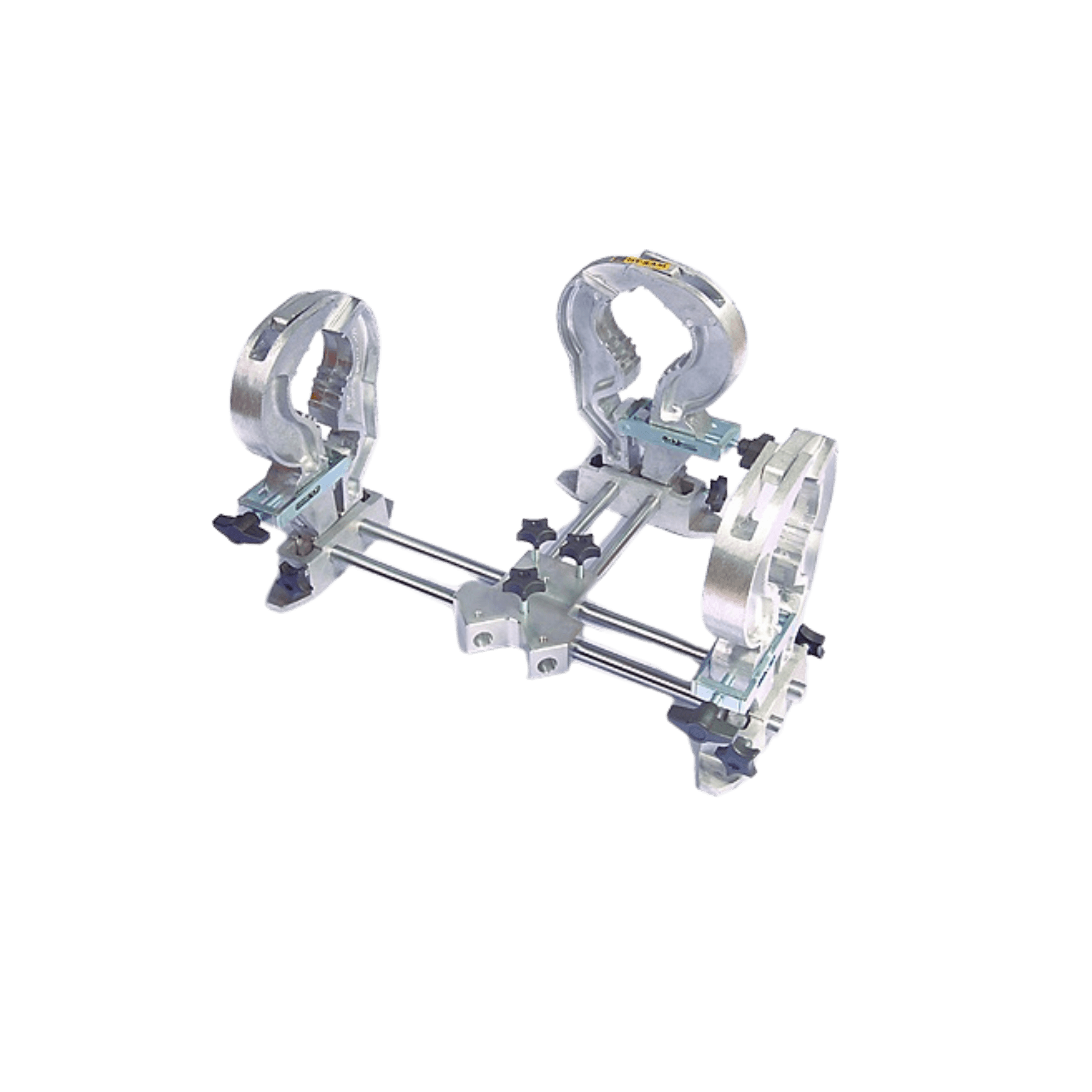

EFAC 180 Alignment Clamp

The EFAC 180 alignment clamp is known as the “original” no-liner clamp, offering a unique design. Its base incorporates a gear mechanism that enables fast and effortless clamping of pipes ranging from 63mm to 180mm in diameter without the need for loose components. The standard version is suitable for straight and reducing electrofusion fittings. The additional 45/90° adaptor kit facilitates for the clamping of elbows and tees as well.

Product Code Description
231-0110 EFAC 100 Standard Kit
231-0130 EFAC 100 Tee Adapter Kit

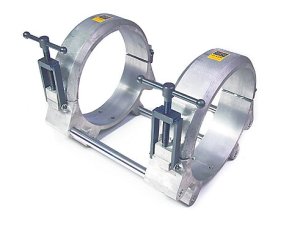

Alignment & Restraining Clamps - 250 & 315mm

These clamps are built to be sturdy and durable with liners that are ideal for securely clamping both straight and reducing electrofusion fittings. These clamps can act as re-rounding tools, making them versatile and practical for various applications.

Product Code Description
231-0230 EFRAC 250mm Alignment Clamp
231-0231 EFRAC Liner 250/180 (4 Required)
231-0250 EFRAC 315mm Alignment Clamp
231-0251 EFRAC Liner 315/250 (4 Required)

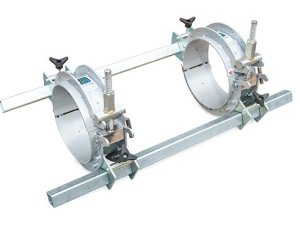

AlignMaster Positioning Clamps - 315, 355 & 400mm

These tools are essential for accurately positioning and restraining pipes during the electrofusion jointing process. Reducing liners are available to suit all pipe sizes between 280-400mm.

Product Code Description
231-0310 Positioning Clamp – 315mm
231-0320 Positioning Clamp – 355mm
231-0330 Positioning Clamp – 400mm
231-0311 Reducing Liner – 315/280 (2Pcs)
231-0331 Reducing Liner – 400/355 (2Pcs)
231-0332 Reducing Liner – 400/315 (2Pcs)

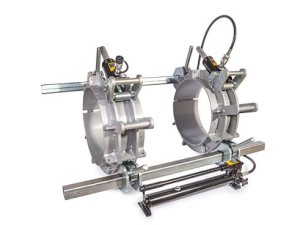

AlignMaster Hydraulic Positioning Kits - 400, 500, 630 & 710mm

These tools serve the purposes of re-rounding, positioning, and securely restraining for various tasks involving large diameter pipes and couplers during the electrofusion jointing process. The hydraulic cylinders greatly aids in clamping large diameter pipes effectively. Reducing liners are available accommodate all pipe sizes ranging from 315mm to 710mm, ensuring versatility and a precise fit for various applications.

Product Code Description
231-0410 Hydraulic Positioning Kit – 400mm
231-0411 Reducing Liners – 400/355
231-0412 Reducing Liners – 400/315
231-0420 Hydraulic Positioning Kit – 0500mm
231-0421 Reducing Liners – 500/450
231-0422 Reducing Liners – 500/400
231-0430 Hydraulic Positioning Kit – 630mm
231-0431 Reducing Liners – 630/560
231-0432 Reducing Liners – 630/500
231-0440 Hydraulic Positioning Kit – 710mm
231-0441 Reducing Liners – 710/630

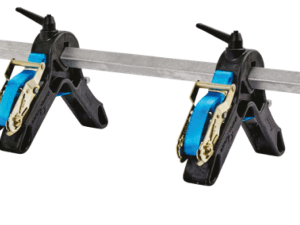

Strap Clamp 200

These alignment clamps are designed for quick and easy setup and are suitable for pipe sizes ranging from 40mm to 200mm. You can choose between single clamps, where you use one clamp on each side of the fitting, or double clamps with 2 clamps each side of fitting when used with the below accessories. Additionally, the angle maker bar serves a versatile purpose, as it can be employed with straight couplers as well as 22.5, 45, and 90-degree elbows, making it a flexible tool for different joint configurations

Product Code Description
231-2020 Strap Clamp 200, Single Clamps, Angled Maker Bar
231-2025 Strap Clamp 200, Double Clamps, Angle Maker Bar

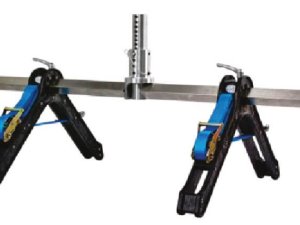

Strap Clamp 500

These lightweight alignment clamps are designed for quick and easy setup and are suitable for larger pipe sizes ranging from 160mm to 500mm. You have the option to choose between single clamps, where one clamp is used on each side of the fitting, or double clamps with 2 clamps each side of the fitting when used with the below accessories. The straight bar is specifically designed for couplers and is ideal for reducing fittings. Additionally, the angle maker bar is a versatile tool that can be used with straight couplers as well as 22.5, 45, and 90-degree elbows, making it suitable for various joint configurations.

Product Code Description
231-2030 Strap Clamp 500, Single Clamp, Straight Bar
231-2035 Strap Clamp 500, Double Clamps, Straight Bar
231-2040 Strap Clamp 500, Single Clamps, Angle Maker Bar
231-4045 Strap Clamp 500, Double Clamps, Angle Maker Bar
