UFUSE

Butt Welders.

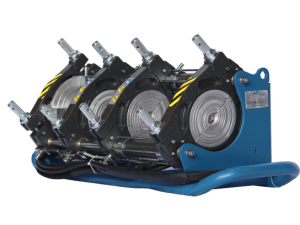

UFUSE 160 Butt Welder

The Australian designed UFUSE 160 electric hydraulic butt welder is capable of welding HDPE and PP pipe with a size range from 40mm to 160mm (outside diameter).

Designed to weld HDPE pipe according to DVS 2207-1, ISO 21307 and POP003 high and low-pressure specifications.

This butt welder is wired ready to accept a data logger.

Key Features:

  • Extractable heating plate and milling cutter
  • 4 jaw main carriage
  • Electro-hydraulic gear-case
  • Heating plate and milling cutter support
  • Tool kit
  • Stub end device (spider)
  • Set of inserts: 40mm, 50mm, 63mm, 75mm, 90mm, 110mm, 125mm, 140mm
  • Main clamp OD: 160mm
Product Code Description
120-0016 UFUSE SMA Butt Fusion Welder – 160mm
120-0017 UFUSE Stub Holder Device – 160mm

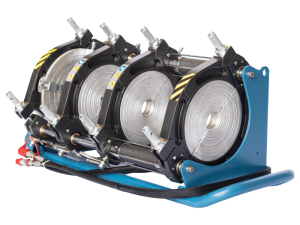

UFUSE 250 Butt Welder

The Australian designed UFUSE 250 electric hydraulic butt welder is capable of welding HDPE and PP pipe with a size range from 63mm to 250mm (outside diameter).
Designed to weld HDPE pipe according to DVS 2207-1, ISO 21307 and POP003 high and low-pressure specifications and is wired and ready to accept a data logger.

Key Features:

  • Extractable heating plate and milling cutter
  • 4 jaw main carriage
  • Electro-hydraulic gear-case
  • Heating plate and milling cutter support
  • Tool kit
  • Stub end device (spider)
  • Set of inserts: 63mm, 75mm, 90mm, 110mm, 125mm, 140mm, 160mm, 180mm, 200mm, 225mm
  • Main clamp OD: 250mm
Product Code Description
120-0016 UFUSE SMA Butt Fusion Welder – 160mm
120-0017 UFUSE Stub Holder Device – 160mm
120-0025-V2 UFUSE SMA Butt Fusion Welder – 250mm
120-0026 UFUSE Stub Holder Device – 250mm

UFUSE 355 Butt Welder

The Australian designed UFUSE 355 electric hydraulic butt welder is capable of welding HDPE and PP pipe with a size range from 90mm to 355mm (outside diameter).

Designed to weld HDPE pipe according to DVS 2207-1, ISO 21307 and POP003 high and low-pressure specifications.

This butt welder is wired ready to accept a data logger.

Key Features:

  • Extractable heating plate and milling cutter
  • 4 jaw main carriage
  • Electro-hydraulic gear-case
  • Heating plate and milling cutter support
  • Tool kit
  • Stub end device (spider)
  • Set of inserts: 90mm, 110mm, 125mm, 140mm, 160mm, 180mm, 200mm, 225mm, 250mm, 280mm,315mm
  • Main clamp OD: 355mm

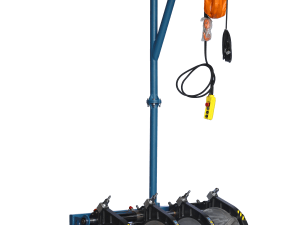

UFUSE 450 Butt Welder

The Australian designed UFUSE 630 electric hydraulic butt welder is capable of welding HDPE and PP pipe with a size range from 315mm to 630mm (outside diameter).

Designed to weld HDPE pipe according to DVS 2207-1, ISO 21307 and POP003 high and low pressure specifications. This butt welder is wired ready to accept a data logger.

Key Features:

  • Extractable heating plate and milling cutter
  • 4 jaw main carriage
  • Electro-hydralic gearcase
  • Heating plate and milling cutter support
  • Tool kit
  • Stub end device (spider)
  • Set of inserts: 40mm, 50mm, 63mm, 75mm, 90mm, 110mm, 125mm, 140mm
  • Main clamp OD: 160mm
Product Code Description
120-0016 UFUSE SMA Butt Fusion Welder – 160mm
120-0017 UFUSE Stub Holder Device – 160mm
120-0025-V2 UFUSE SMA Butt Fusion Welder – 250mm

UFUSE 1000 Butt Welder

The UFUSE 1000 butt fusion welding machine is perfect for butt-welding polyethylene pipes with an outside diameter between 630 mm and 1000 mm diameter.

Key Features:

  • Extractable heating plate and milling cutter
  • 4 jaw main carriage
  • Electro-hydraulic gear-case
  • Heating plate and milling cutter support
  • Tool kit
  • Stub end device (spider)
  • Set of inserts: 630mm, 710mm, 800mm, 900mm
  • Main clamp OD: 1000mm
Product Code Description
120-0016 UFUSE SMA Butt Fusion Welder – 160mm
120-0017 UFUSE Stub Holder Device – 160mm
120-0025-V2 UFUSE SMA Butt Fusion Welder – 250mm
Product CodeDescription
120-0100UFUSE SMA Butt Fusion Welder – 1000mm
120-0101UFUSE Stub Holder Device – 1000mm

UFUSE 1200 Butt Welder

The UFUSE 1200 butt fusion welding machine is perfect for butt-welding polyethylene pipes with an outside diameter between 630 mm and 1200 mm diameter.

Key Features:

  • Extractable heating plate and milling cutter
  • 4 jaw main carriage
  • Electro-hydraulic gear-case
  • Heating plate and milling cutter support
  • Tool kit
  • Stub end device (spider)
  • Set of inserts: 630mm, 710mm, 800mm, 900mm
  • Main clamp OD: 1200mm
Product Code Description
120-0120 UFUSE SMA Butt Fusion Welder – 1200mm
120-0121 UFUSE Stub Holder Device – 1200mm
